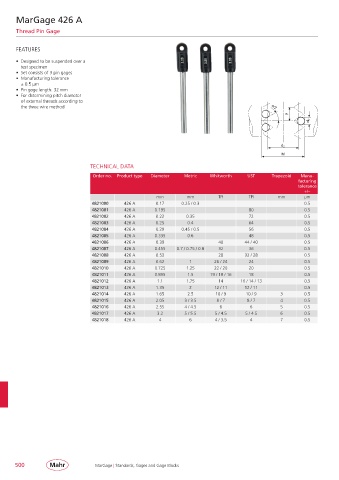

MarGage 426 A

Thread Pin Gage

FEATURES

• Designed to be suspended over a
test specimen
• Set consists of 3 pin gages
• Manufacturing tolerance
± 0.5 µm
• Pin gage length: 32 mm
• For determining pitch diameter
of external threads according to
the three wire method

TECHNICAL DATA
Order no. Product type Diameter Metric Whitworth UST Trapezoid Manu-
facturing
tolerance
+/–
mm mm TPI TPI mm µm
4821000 426 A 0.17 0.25 / 0.3 0.5
4821001 426 A 0.195 80 0.5
4821002 426 A 0.22 0.35 72 0.5
4821003 426 A 0.25 0.4 64 0.5
4821004 426 A 0.29 0.45 / 0.5 56 0.5
4821005 426 A 0.335 0.6 48 0.5
4821006 426 A 0.39 40 44 / 40 0.5
4821007 426 A 0.455 0.7 / 0.75 / 0.8 32 36 0.5
4821008 426 A 0.53 28 32 / 28 0.5
4821009 426 A 0.62 1 26 / 24 24 0.5
4821010 426 A 0.725 1.25 22 / 20 20 0.5
4821011 426 A 0.895 1.5 19 / 18 / 16 18 0.5
4821012 426 A 1.1 1.75 14 16 / 14 / 13 0.5
4821013 426 A 1.35 2 12 / 11 12 / 11 0.5
4821014 426 A 1.65 2.5 10 / 9 10 / 9 3 0.5
4821015 426 A 2.05 3 / 3.5 8 / 7 8 / 7 4 0.5
4821016 426 A 2.55 4 / 4.5 6 6 5 0.5
4821017 426 A 3.2 5 / 5.5 5 / 4.5 5 / 4.5 6 0.5
4821018 426 A 4 6 4 / 3.5 4 7 0.5
