P. 501

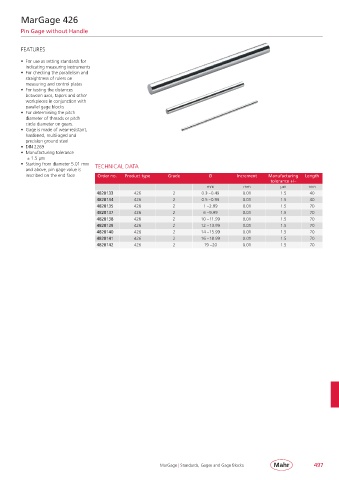

MarGage 426
Pin Gage without Handle
FEATURES
• For use as setting standards for
indicating measuring instruments
• For checking the parallelism and
straightness of rulers on
measuring and control plates
• For testing the distances
between axes, tapers and other
workpieces in conjunction with
parallel gage blocks
• For determining the pitch
diameter of threads or pitch
circle diameter on gears.
• Gage is made of wear-resistant,
hardened, multi-aged and
precision ground steel
• DIN 2269
• Manufacturing tolerance
± 1.5 μm
• Starting from diameter 5.01 mm TECHNICAL DATA
and above, pin gage value is
inscribed on the end face Order no. Product type Grade Ø Increment Manufacturing Length
tolerance +/–
mm mm µm mm
4828133 426 2 0.3 – 0.49 0.01 1.5 40
4828134 426 2 0.5 – 0.99 0.01 1.5 40
4828135 426 2 1 – 2.99 0.01 1.5 70
4828137 426 2 6 – 9.99 0.01 1.5 70
4828138 426 2 10 – 11.99 0.01 1.5 70
4828139 426 2 12 – 13.99 0.01 1.5 70
4828140 426 2 14 – 15.99 0.01 1.5 70
4828141 426 2 16 – 18.99 0.01 1.5 70
4828142 426 2 19 – 20 0.01 1.5 70
MarGage | Standards, Gages and Gage Blocks 497
