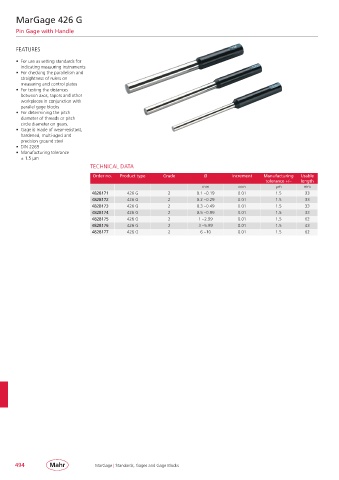

MarGage 426 G

Pin Gage with Handle

FEATURES

• For use as setting standards for
indicating measuring instruments
• For checking the parallelism and
straightness of rulers on
measuring and control plates
• For testing the distances
between axes, tapers and other
workpieces in conjunction with
parallel gage blocks
• For determining the pitch
diameter of threads or pitch
circle diameter on gears.
• Gage is made of wear-resistant,
hardened, multi-aged and
precision ground steel
• DIN 2269
• Manufacturing tolerance
± 1.5 µm
TECHNICAL DATA
Order no. Product type Grade Ø Increment Manufacturing Usable
tolerance +/– length
mm mm µm mm
4828171 426 G 2 0.1 – 0.19 0.01 1.5 33
4828172 426 G 2 0.2 – 0.29 0.01 1.5 33
4828173 426 G 2 0.3 – 0.49 0.01 1.5 33
4828174 426 G 2 0.5 – 0.99 0.01 1.5 33
4828175 426 G 2 1 – 2.99 0.01 1.5 62
4828176 426 G 2 3 – 5.99 0.01 1.5 43
4828177 426 G 2 6 – 10 0.01 1.5 62
