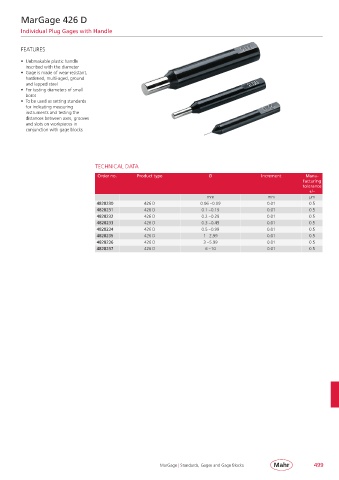

MarGage 426 D

Individual Plug Gages with Handle

FEATURES

• Unbreakable plastic handle
inscribed with the diameter
• Gage is made of wear-resistant,
hardened, multi-aged, ground
and lapped steel
• For testing diameters of small
bores
• To be used as setting standards
for indicating measuring
instruments and testing the
distances between axes, grooves
and slots on workpieces in
conjunction with gage blocks

TECHNICAL DATA
Order no. Product type Ø Increment Manu-
facturing
tolerance
+/–
mm mm µm
4828230 426 D 0.06 – 0.09 0.01 0.5
4828231 426 D 0.1 – 0.19 0.01 0.5
4828232 426 D 0.2 – 0.29 0.01 0.5
4828233 426 D 0.3 – 0.49 0.01 0.5
4828234 426 D 0.5 – 0.99 0.01 0.5
4828235 426 D 1 – 2.99 0.01 0.5
4828236 426 D 3 – 5.99 0.01 0.5
4828237 426 D 6 – 10 0.01 0.5

MarGage | Standards, Gages and Gage Blocks 499
