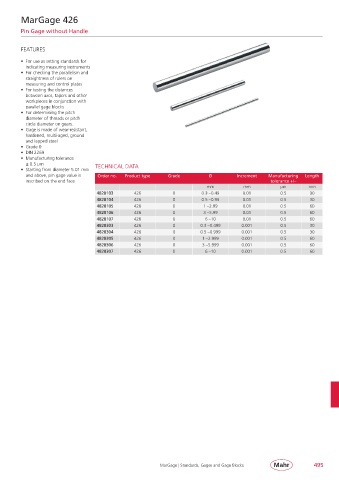

MarGage 426

Pin Gage without Handle

FEATURES

• For use as setting standards for
indicating measuring instruments
• For checking the parallelism and
straightness of rulers on
measuring and control plates
• For testing the distances
between axes, tapers and other
workpieces in conjunction with
parallel gage blocks
• For determining the pitch
diameter of threads or pitch
circle diameter on gears.
• Gage is made of wear-resistant,
hardened, multi-aged, ground
and lapped steel
• Grade 0
• DIN 2269
• Manufacturing tolerance
± 0.5 μm TECHNICAL DATA
• Starting from diameter 5.01 mm
and above, pin gage value is Order no. Product type Grade Ø Increment Manufacturing Length
inscribed on the end face tolerance +/–
mm mm µm mm
4828103 426 0 0.3 – 0.49 0.01 0.5 30
4828104 426 0 0.5 – 0.99 0.01 0.5 30
4828105 426 0 1 – 2.99 0.01 0.5 60
4828106 426 0 3 – 5.99 0.01 0.5 60
4828107 426 0 6 – 10 0.01 0.5 60
4828303 426 0 0.3 – 0.499 0.001 0.5 30
4828304 426 0 0.5 – 0.999 0.001 0.5 30
4828305 426 0 1 – 2.999 0.001 0.5 60
4828306 426 0 3 – 5.999 0.001 0.5 60
4828307 426 0 6 – 10 0.001 0.5 60
