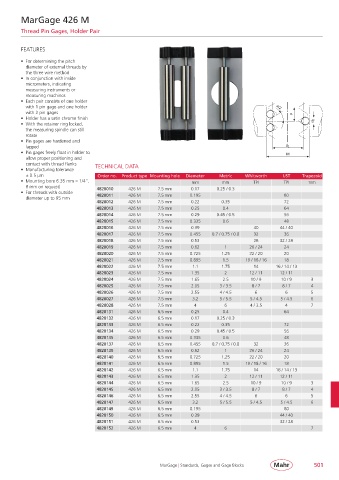

MarGage 426 M

Thread Pin Gages, Holder Pair

FEATURES

• For determining the pitch
diameter of external threads by
the three wire method
• In conjunction with inside
micrometers, indicating
measuring instruments or
measuring machines
• Each pair consists of one holder
with 1 pin gage and one holder
with 2 pin gages
• Holder has a satin chrome finish
• With the retainer ring locked,
the measuring spindle can still
rotate
• Pin gages are hardened and
lapped
• Pin gages freely float in holder to
allow proper positioning and
contact with thread flanks TECHNICAL DATA
• Manufacturing tolerance
± 0.5 μm Order no. Product type Mounting hole Diameter Metric Whitworth UST Trapezoid
• Mounting bore 6.35 mm = 1/4”, mm mm TPI TPI mm
8 mm on request) 4820010 426 M 7.5 mm 0.17 0.25 / 0.3
• For threads with outside 4820011 426 M 7.5 mm 0.195 80
diameter up to 95 mm
4820012 426 M 7.5 mm 0.22 0.35 72
4820013 426 M 7.5 mm 0.25 0.4 64
4820014 426 M 7.5 mm 0.29 0.45 / 0.5 56
4820015 426 M 7.5 mm 0.335 0.6 48
4820016 426 M 7.5 mm 0.39 40 44 / 40
4820017 426 M 7.5 mm 0.455 0.7 / 0.75 / 0.8 32 36
4820018 426 M 7.5 mm 0.53 28 32 / 28
4820019 426 M 7.5 mm 0.62 1 26 / 24 24
4820020 426 M 7.5 mm 0.725 1.25 22 / 20 20
4820021 426 M 7.5 mm 0.895 1.5 19 / 18 / 16 18
4820022 426 M 7.5 mm 1.1 1.75 14 16 / 14 / 13
4820023 426 M 7.5 mm 1.35 2 12 / 11 12 / 11
4820024 426 M 7.5 mm 1.65 2.5 10 / 9 10 / 9 3
4820025 426 M 7.5 mm 2.05 3 / 3.5 8 / 7 8 / 7 4
4820026 426 M 7.5 mm 2.55 4 / 4.5 6 6 5
4820027 426 M 7.5 mm 3.2 5 / 5.5 5 / 4.5 5 / 4.5 6
4820028 426 M 7.5 mm 4 6 4 / 3.5 4 7
4820131 426 M 6.5 mm 0.25 0.4 64
4820132 426 M 6.5 mm 0.17 0.25 / 0.3
4820133 426 M 6.5 mm 0.22 0.35 72
4820134 426 M 6.5 mm 0.29 0.45 / 0.5 56
4820135 426 M 6.5 mm 0.335 0.6 48
4820137 426 M 6.5 mm 0.455 0.7 / 0.75 / 0.8 32 36
4820139 426 M 6.5 mm 0.62 1 26 / 24 24
4820140 426 M 6.5 mm 0.725 1.25 22 / 20 20
4820141 426 M 6.5 mm 0.895 1.5 19 / 18 / 16 18
4820142 426 M 6.5 mm 1.1 1.75 14 16 / 14 / 13
4820143 426 M 6.5 mm 1.35 2 12 / 11 12 / 11
4820144 426 M 6.5 mm 1.65 2.5 10 / 9 10 / 9 3
4820145 426 M 6.5 mm 2.05 3 / 3.5 8 / 7 8 / 7 4
4820146 426 M 6.5 mm 2.55 4 / 4.5 6 6 5
4820147 426 M 6.5 mm 3.2 5 / 5.5 5 / 4.5 5 / 4.5 6
4820149 426 M 6.5 mm 0.195 80
4820150 426 M 6.5 mm 0.39 44 / 40
4820151 426 M 6.5 mm 0.53 32 / 28
4820152 426 M 6.5 mm 4 6 7
