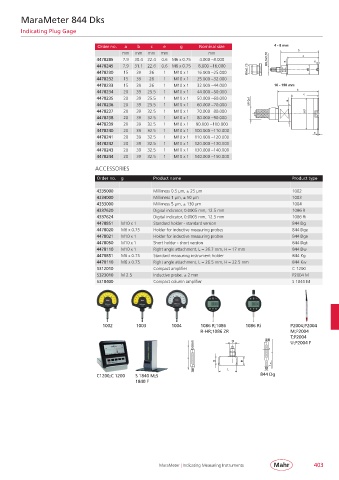

MaraMeter 844 Dks

Indicating Plug Gage

Order no. a b c e g Nominal size 4 - 8 mm
mm mm mm mm mm b c
4478285 7.9 30.4 22.4 0.6 M6 x 0.75 4.000 – 8.000 M3,5x0,35 a e
4478245 7.9 31.1 22.6 0.6 M6 x 0.75 8.000 – 16.000
4478230 15 39 26 1 M10 x 1 16.000 – 25.000 M6x0,75 ød
4478232 15 39 26 1 M10 x 1 25.000 – 32.000
4478233 15 39 26 1 M10 x 1 32.000 – 44.000 16 - 150 mm
4478234 20 39 25.5 1 M10 x 1 44.000 – 50.000 b
c
4478235 20 39 25.5 1 M10 x 1 50.000 – 60.000 M10x1 a
4478236 20 39 25.5 1 M10 x 1 60.000 – 70.000
4478237 20 39 32.5 1 M10 x 1 70.000 – 80.000 ød
4478238 20 39 32.5 1 M10 x 1 80.000 – 90.000
4478239 20 39 32.5 1 M10 x 1 90.000 – 100.000
4478240 20 39 32.5 1 M10 x 1 100.000 – 110.000 e
4478241 20 39 32.5 1 M10 x 1 110.000 – 120.000
4478242 20 39 32.5 1 M10 x 1 120.000 – 130.000
4478243 20 39 32.5 1 M10 x 1 130.000 – 140.000
4478244 20 39 32.5 1 M10 x 1 140.000 – 150.000
ACCESSORIES
Order no. g Product name Product type

4335000 Millimess 0.5 µm, ± 25 µm 1002
4334000 Millimess 1 µm, ± 50 µm 1003
4333000 Millimess 5 µm, ± 130 µm 1004
4337620 Digital indicator, 0.0005 mm, 12.5 mm 1086 R
4337624 Digital indicator, 0.0005 mm, 12.5 mm 1086 Ri
4478851 M10 x 1 Standard holder - standard version 844 Dg
4478020 M6 x 0.75 Holder for inductive measuring probes 844 Dge
4478021 M10 x 1 Holder for inductive measuring probes 844 Dge
4478050 M10 x 1 Short holder - short version 844 Dgk
4478110 M10 x 1 Right angle attachment, L = 36.7 mm, H = 17 mm 844 Dw
4470851 M6 x 0.75 Standard measuring instrument holder 844 Kg
4470110 M6 x 0.75 Right angle attachment, L = 26.5 mm, H = 22.5 mm 844 Kw
5312010 Compact amplifier C 1200
5323010 M 2.5 Inductive probe, ± 2 mm P2004 M
5318400 Compact column amplifier S 1840 M

1002 1003 1004 1086 R;1086 1086 Ri P2004;P2004
R-HR;1086 ZR M;P2004
T;P2004
U;P2004 F

C1200;C 1200 S 1840 M;S 844 Dg
1840 F

MaraMeter | Indicating Measuring Instruments 403
