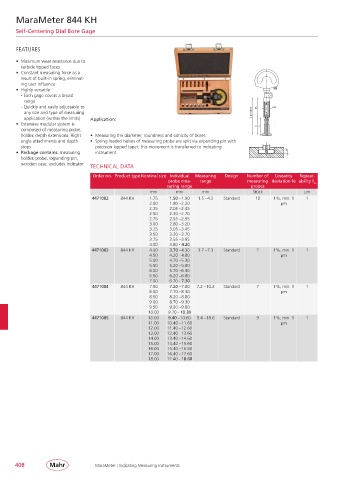

MaraMeter 844 KH

Self-Centering Dial Bore Gage

FEATURES

• Maximum wear resistance due to
carbide tipped faces
• Constant measuring force as a
result of built-in spring, eliminat-
ing user influence
• Highly versatile
- Each gage covers a broad
range
- Quickly and easily adjustable to
any size and type of measuring
application (within the limits) Application: t, ø
• Extensive modular system is t
composed of measuring probe,
holder, depth extensions, Right • Measuring the diameter, roundness and conicity of bores
angle attachments and depth • Spring loaded halves of measuring probe are split via expanding pin with
stops precision lapped taper; this movement is transferred to indicating
• Package contains: measuring instrument
holder, probe, expanding pin,
wooden case, excludes indicator
TECHNICAL DATA
Order no. Product type Nominal size Individual Measuring Design Number of Linearity Repeat-
probe mea- range measuring deviation fe ability f w
suring range probes
mm mm mm Stück µm
4471002 844 KH 1.75 1.50 – 1.90 1.5 – 4.2 Standard 10 1%, min. 1 1
2.00 1.80 – 2.20 µm
2.25 2.05 – 2.45
2.50 2.30 – 2.70
2.75 2.55 – 2.95
3.00 2.80 – 3.20
3.25 3.05 – 3.45
3.50 3.30 – 3.70
3.75 3.55 – 3.95
4.00 3.80 - 4.20
4471003 844 KH 4.00 3.70 – 4.30 3.7 – 7.3 Standard 7 1%, min. 1 1
4.50 4.20 – 4.80 µm
5.00 4.70 – 5.30
5.50 5.20 – 5.80
6.00 5.70 – 6.30
6.50 6.20 – 6.80
7.00 6.70 - 7.30
4471004 844 KH 7.50 7.20 – 7.80 7.2 – 10.3 Standard 7 1%, min. 1 1
8.00 7.70 – 8.30 µm
8.50 8.20 – 8.80
9.00 8.70 – 9.30
9.50 9.20 – 9.80
10.00 9.70 - 10.30
4471005 844 KH 10.00 9.40 – 10.60 9.4 – 18.6 Standard 9 1%, min. 1 1
11.00 10.40 – 11.60 µm
12.00 11.40 – 12.60
13.00 12.40 – 13.60
14.00 13.40 – 14.60
15.00 14.40 – 15.60
16.00 15.40 – 16.60
17.00 16.40 – 17.60
18.00 17.40 - 18.60
