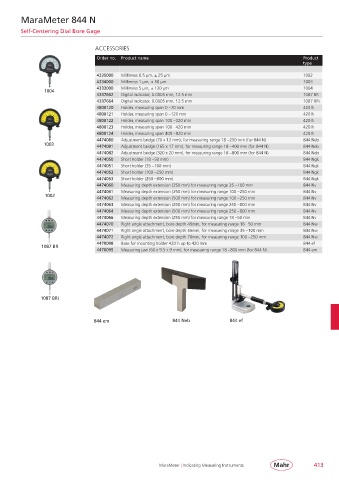

MaraMeter 844 N

Self-Centering Dial Bore Gage

ACCESSORIES
Order no. Product name Product
type

4335000 Millimess 0.5 µm, ± 25 µm 1002
4334000 Millimess 1 µm, ± 50 µm 1003
4333000 Millimess 5 µm, ± 130 µm 1004
1004
4337662 Digital indicator, 0.0005 mm, 12.5 mm 1087 BR
4337664 Digital indicator, 0.0005 mm, 12.5 mm 1087 BRi
4800120 Holder, measuring span 0 – 70 mm 420 h
4800121 Holder, measuring span 0 – 120 mm 420 h
4800122 Holder, measuring span 100 – 220 mm 420 h
4800123 Holder, measuring span 100 – 420 mm 420 h
4800124 Holder, measuring span 400 – 820 mm 420 h
4474080 Adjustment bridge (70 x 12 mm), for measuring range 18 – 250 mm (for 844 N) 844 Neb
1003 4474081 Adjustment bridge (165 x 17 mm), for measuring range 18 – 400 mm (for 844 N) 844 Neb
4474082 Adjustment bridge (320 x 20 mm), for measuring range 18 – 800 mm (for 844 N) 844 Neb
4474050 Short holder (18 – 50 mm) 844 Ngk
4474051 Short holder (35 – 100 mm) 844 Ngk
4474052 Short holder (100 – 250 mm) 844 Ngk
4474053 Short holder (250 – 800 mm) 844 Ngk
4474060 Measuring depth extension (250 mm) for measuring range 35 – 100 mm 844 Nv
4474061 Measuring depth extension (250 mm) for measuring range 100 – 250 mm 844 Nv
1002
4474062 Measuring depth extension (500 mm) for measuring range 100 – 250 mm 844 Nv
4474063 Measuring depth extension (250 mm) for measuring range 250 – 800 mm 844 Nv
4474064 Measuring depth extension (500 mm) for measuring range 250 – 800 mm 844 Nv
4474066 Measuring depth extension (250 mm) for measuring range 18 – 50 mm 844 Nv
4474070 Right angle attachment, bore depth 45mm, for measuring range 18 – 50 mm 844 Nw
4474071 Right angle attachment, bore depth 55mm, for measuring range 35 – 100 mm 844 Nw
4474072 Right angle attachment, bore depth 70mm, for measuring range 100 – 250 mm 844 Nw
4470098 Base for mounting holder 420 h up to 420 mm 844 ef
1087 BR
4470095 Measuring jaw (60 x 9.5 x 9 mm), for measuring range 18 – 800 mm (for 844 N) 844 em

1087 BRi

844 em 844 Neb 844 ef
