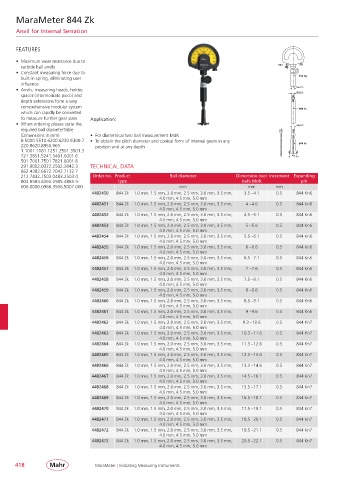

MaraMeter 844 Zk

Anvil for Internal Serration

FEATURES

• Maximum wear resistance due to
carbide ball anvils 954
• Constant measuring force due to 844 Kg
built-in spring, eliminating user
influence
M6x0,75
• Anvils, measuring heads, holder,
M6x0,75
spacer (intermediate piece) and
depth extensions form a very
comprehensive modular system 844 Kv
which can rapidly be converted
to measure further gear sizes Application:
• When ordering please state the M6x0,75
required ball diameterTable
(Dimensions in mm) • For diametrical two ball measurement MdK
0.5000.5510.6200.6230.6300.7 • To obtain the pitch diameter and conical form of internal gears in any
220.8620.8950.965 position and at any depth 844 Kk
1.1001.1181.1251.2501.3501.3
721.3851.5241.5401.6001.6 M dk
501.7001.7501.7821.8001.8
291.9002.0322.2502.2842.3 TECHNICAL DATA
862.4382.6672.7042.7132.7
212.7432.7503.0483.2503.4 Order no. Product Ball diameter Dimension over Increment Expanding
003.6584.8355.2505.4865.5- type balls MdK pin
006.0006.0966.3506.5007.000 mm mm mm
4482450 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 3.5 – 4.1 0.5 844 Kn6
4.0 mm, 4.5 mm, 5.0 mm
4482451 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4 – 4.6 0.5 844 Kn6
4.0 mm, 4.5 mm, 5.0 mm
4482452 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.5 – 5.1 0.5 844 Kn6
4.0 mm, 4.5 mm, 5.0 mm
4482453 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 5 – 5.6 0.5 844 Kn6
4.0 mm, 4.5 mm, 5.0 mm
4482454 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 5.5 – 6.1 0.5 844 Kn6
4.0 mm, 4.5 mm, 5.0 mm
4482455 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 6 – 6.6 0.5 844 Kn6
4.0 mm, 4.5 mm, 5.0 mm
4482456 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 6.5 – 7.1 0.5 844 Kn6
4.0 mm, 4.5 mm, 5.0 mm
4482457 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 7 – 7.6 0.5 844 Kn6
4.0 mm, 4.5 mm, 5.0 mm
4482458 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 7.5 – 8.1 0.5 844 Kn6
4.0 mm, 4.5 mm, 5.0 mm
4482459 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 8 – 8.6 0.5 844 Kn6
4.0 mm, 4.5 mm, 5.0 mm
4482460 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 8.5 – 9.1 0.5 844 Kn6
4.0 mm, 4.5 mm, 5.0 mm
4482461 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 9 – 9.6 0.5 844 Kn6
4.0 mm, 4.5 mm, 5.0 mm
4482462 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 9.3 – 10.6 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482463 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 10.3 – 11.6 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482464 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 11.3 – 12.6 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482465 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 12.3 – 13.6 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482466 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 13.3 – 14.6 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482467 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 14.5 – 16.1 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482468 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 15.5 – 17.1 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482469 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 16.5 – 18.1 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482470 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 17.5 – 19.1 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482471 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 18.5 – 20.1 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482472 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 19.5 – 21.1 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482473 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 20.5 – 22.1 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm

418 MaraMeter | Indicating Measuring Instruments
