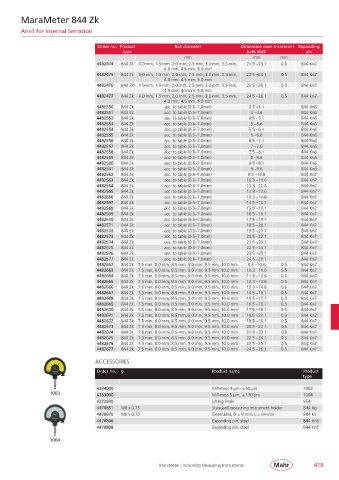

Page 423 - Mahr马尔量具完整

MaraMeter 844 Zk

Anvil for Internal Serration

Order no. Product Ball diameter Dimension over Increment Expanding
type balls MdK pin
mm mm mm
4482474 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 21.5 – 23.1 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482475 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 22.5 – 24.1 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482476 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 23.5 – 25.1 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482477 844 Zk 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 24.5 – 26.1 0.5 844 Kn7
4.0 mm, 4.5 mm, 5.0 mm
4482550 844 Zk acc. to table (0.5– 7.0mm) 3.5 – 4.1 844 Kn6
4482551 844 Zk acc. to table (0.5– 7.0mm) 4 – 4.6 844 Kn6
4482552 844 Zk acc. to table (0.5– 7.0mm) 4.5 – 5.1 844 Kn6
4482553 844 Zk acc. to table (0.5– 7.0mm) 5 – 5.6 844 Kn6
4482554 844 Zk acc. to table (0.5– 7.0mm) 5.5 – 6.1 844 Kn6
4482555 844 Zk acc. to table (0.5– 7.0mm) 6 – 6.6 844 Kn6
4482556 844 Zk acc. to table (0.5– 7.0mm) 6.5 – 7.1 844 Kn6
4482557 844 Zk acc. to table (0.5– 7.0mm) 7 – 7.6 844 Kn6
4482558 844 Zk acc. to table (0.5– 7.0mm) 7.5 – 8.1 844 Kn6
4482559 844 Zk acc. to table (0.5– 7.0mm) 8 – 8.6 844 Kn6
4482560 844 Zk acc. to table (0.5– 7.0mm) 8.5 – 9.1 844 Kn6
4482561 844 Zk acc. to table (0.5– 7.0mm) 9 – 9.6 844 Kn6
4482562 844 Zk acc. to table (0.5– 7.0mm) 9.3 – 10.6 844 Kn7
4482563 844 Zk acc. to table (0.5– 7.0mm) 10.3 – 11.6 844 Kn7
4482564 844 Zk acc. to table (0.5– 7.0mm) 11.3 – 12.6 844 Kn7
4482565 844 Zk acc. to table (0.5– 7.0mm) 12.3 – 13.6 844 Kn7
4482566 844 Zk acc. to table (0.5– 7.0mm) 13.3 – 14.6 844 Kn7
4482567 844 Zk acc. to table (0.5– 7.0mm) 14.5 – 16.1 844 Kn7
4482568 844 Zk acc. to table (0.5– 7.0mm) 15.5 – 17.1 844 Kn7
4482569 844 Zk acc. to table (0.5– 7.0mm) 16.5 – 18.1 844 Kn7
4482570 844 Zk acc. to table (0.5– 7.0mm) 17.5 – 19.1 844 Kn7
4482571 844 Zk acc. to table (0.5– 7.0mm) 18.5 – 20.1 844 Kn7
4482572 844 Zk acc. to table (0.5– 7.0mm) 19.5 – 21.1 844 Kn7
4482573 844 Zk acc. to table (0.5– 7.0mm) 20.5 – 22.1 844 Kn7
4482574 844 Zk acc. to table (0.5– 7.0mm) 21.5 – 23.1 844 Kn7
4482575 844 Zk acc. to table (0.5– 7.0mm) 22.5 – 24.1 844 Kn7
4482576 844 Zk acc. to table (0.5– 7.0mm) 23.5 – 25.1 844 Kn7
4482577 844 Zk acc. to table (0.5– 7.0mm) 24.5 – 26.1 844 Kn7
4482662 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 9.3 – 10.6 0.5 844 Kn7
4482663 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 10.3 – 11.6 0.5 844 Kn7
4482664 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 11.3 – 12.6 0.5 844 Kn7
4482665 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 12.3 – 13.6 0.5 844 Kn7
4482666 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 13.3 – 14.6 0.5 844 Kn7
4482667 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 14.5 – 16.1 0.5 844 Kn7
4482668 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 15.5 – 17.1 0.5 844 Kn7
4482669 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 16.5 – 18.1 0.5 844 Kn7
4482670 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 17.5 – 19.1 0.5 844 Kn7
4482671 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 18.5 – 20.1 0.5 844 Kn7
4482672 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 19.5 – 21.1 0.5 844 Kn7
4482673 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 20.5 – 22.1 0.5 844 Kn7
4482674 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 21.5 – 23.1 0.5 844 Kn7
4482675 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 22.5 – 24.1 0.5 844 Kn7
4482676 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 23.5 – 25.1 0.5 844 Kn7
4482677 844 Zk 7.5 mm, 8.0 mm, 8.5 mm, 9.0 mm, 9.5 mm, 10.0 mm 24.5 – 26.1 0.5 844 Kn7
ACCESSORIES

Order no. g Product name Product
type

4334000 Millimess 1 µm, ± 50 µm 1003
1003 4333000 Millimess 5 µm, ± 130 µm 1004
4372030 Lifting knob 954
4470851 M6 x 0.75 Standard measuring instrument holder 844 Kg
4470070 M6 x 0.75 Extensions, D = 8 mm, L = 64 mm 844 Kv
4470806 Expanding pin, steel 844 Kn6
4470808 Expanding pin, steel 844 Kn7

1004

MaraMeter | Indicating Measuring Instruments 419
