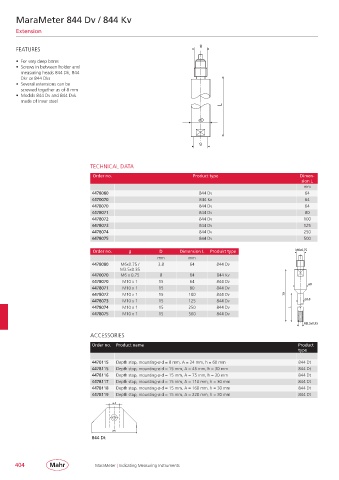

MaraMeter 844 Dv / 844 Kv

Extension

g
FEATURES
• For very deep bores
• Screws in between holder and
measuring heads 844 Dk, 844
Dkr or 844 Dks
• Several extensions can be
screwed together as of 8 mm
• Models 844 Dv and 844 Dvk
made of Invar steel
L

øD

g

TECHNICAL DATA
Order no. Product type Dimen-
sion L
mm
4478080 844 Dv 64
4470070 844 Kv 64
4478070 844 Dv 64
4478071 844 Dv 80
4478072 844 Dv 100
4478073 844 Dv 125
4478074 844 Dv 250
4478075 844 Dv 500
Order no. g D Dimension L Produkt type M6x0,75
mm mm
4478080 M6x0.75 / 3.8 64 844 Dv
M3.5x0.35
4470070 M6 x 0.75 8 64 844 Kv
4478070 M10 x 1 15 64 844 Dv
ø8
4478071 M10 x 1 15 80 844 Dv
4478072 M10 x 1 15 100 844 Dv 79
4478073 M10 x 1 15 125 844 Dv ø3,8
4478074 M10 x 1 15 250 844 Dv L
4478075 M10 x 1 15 500 844 Dv
M3,5x0,35

ACCESSORIES
Order no. Product name Product
type

4470115 Depth stop, mounting-ø d = 8 mm, A = 24 mm, h = 60 mm 844 Dt
4478115 Depth stop, mounting-ø d = 15 mm, A = 45 mm, h = 30 mm 844 Dt
4478116 Depth stop, mounting-ø d = 15 mm, A = 75 mm, h = 30 mm 844 Dt
4478117 Depth stop, mounting-ø d = 15 mm, A = 110 mm, h = 30 mm 844 Dt
4478118 Depth stop, mounting-ø d = 15 mm, A = 160 mm, h = 30 mm 844 Dt
4478119 Depth stop, mounting-ø d = 15 mm, A = 220 mm, h = 30 mm 844 Dt
ø d

øA
844 Dt

404 MaraMeter | Indicating Measuring Instruments
