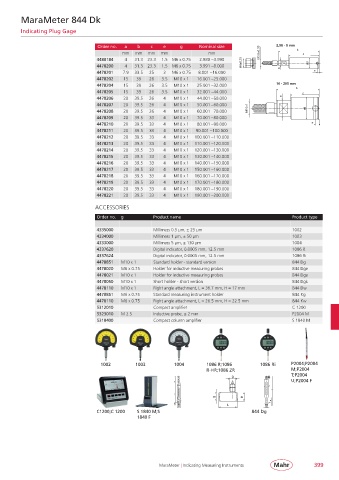

MaraMeter 844 Dk

Indicating Plug Gage

Order no. a b c e g Nominal size 2,98 - 8 mm b
mm mm mm mm mm M3,5x0,35 c
4480184 4 31.3 23.3 1.5 M6 x 0.75 2.980 – 3.990
4478200 4 31.3 23.3 1.5 M6 x 0.75 3.991 – 8.000 M6x0,75 a ød
4478201 7.9 33.5 25 3 M6 x 0.75 8.001 – 16.000 e
4478202 15 39 26 3.5 M10 x 1 16.001 – 25.000
4478204 15 39 26 3.5 M10 x 1 25.001 – 32.000 16 - 200 mm
b
4478205 15 39 26 3.5 M10 x 1 32.001 – 44.000 c
4478206 20 39.5 26 4 M10 x 1 44.001 – 50.000 a
4478207 20 39.5 26 4 M10 x 1 50.001 – 60.000
4478208 20 39.5 26 4 M10 x 1 60.001 – 70.000 M10x1 ød
4478209 20 39.5 33 4 M10 x 1 70.001 – 80.000
4478210 20 39.5 33 4 M10 x 1 80.001 – 90.000 e
4478211 20 39.5 33 4 M10 x 1 90.001 – 100.000
4478212 20 39.5 33 4 M10 x 1 100.001 – 110.000
4478213 20 39.5 33 4 M10 x 1 110.001 – 120.000
4478214 20 39.5 33 4 M10 x 1 120.001 – 130.000
4478215 20 39.5 33 4 M10 x 1 130.001 – 140.000
4478216 20 39.5 33 4 M10 x 1 140.001 – 150.000
4478217 20 39.5 33 4 M10 x 1 150.001 – 160.000
4478218 20 39.5 33 4 M10 x 1 160.001 – 170.000
4478219 20 39.5 33 4 M10 x 1 170.001 – 180.000
4478220 20 39.5 33 4 M10 x 1 180.001 – 190.000
4478221 20 39.5 33 4 M10 x 1 190.001 – 200.000

ACCESSORIES
Order no. g Product name Product type

4335000 Millimess 0.5 µm, ± 25 µm 1002
4334000 Millimess 1 µm, ± 50 µm 1003
4333000 Millimess 5 µm, ± 130 µm 1004
4337620 Digital indicator, 0.0005 mm, 12.5 mm 1086 R
4337624 Digital indicator, 0.0005 mm, 12.5 mm 1086 Ri
4478851 M10 x 1 Standard holder - standard version 844 Dg
4478020 M6 x 0.75 Holder for inductive measuring probes 844 Dge
4478021 M10 x 1 Holder for inductive measuring probes 844 Dge
4478050 M10 x 1 Short holder - short version 844 Dgk
4478110 M10 x 1 Right angle attachment, L = 36.7 mm, H = 17 mm 844 Dw
4470851 M6 x 0.75 Standard measuring instrument holder 844 Kg
4470110 M6 x 0.75 Right angle attachment, L = 26.5 mm, H = 22.5 mm 844 Kw
5312010 Compact amplifier C 1200
5323010 M 2.5 Inductive probe, ± 2 mm P2004 M
5318400 Compact column amplifier S 1840 M

1002 1003 1004 1086 R;1086 1086 Ri P2004;P2004
R-HR;1086 ZR M;P2004
T;P2004
U;P2004 F

C1200;C 1200 S 1840 M;S 844 Dg
1840 F

MaraMeter | Indicating Measuring Instruments 399
