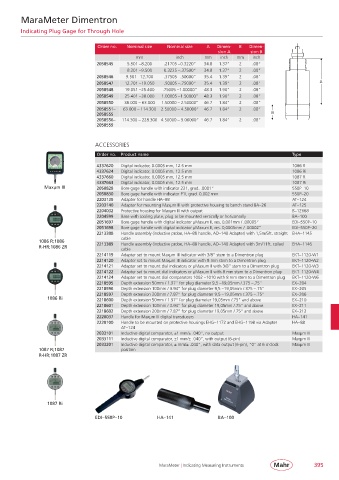

MaraMeter Dimentron

Indicating Plug Gage for Through Hole

Order no. Nominal size Nominal size A Dimen- B Dimen-
sion A sion B
mm inch mm inch mm inch
2058545 5.501 – 8.200 .21705 – 0.3220“ 34.8 1.37“ 2 .08“
8.201 – 9.500 0.3225 – .37500“ 34.8 1.37“ 2 .08“
2058546 9.501 – 12.700 .37505 – .50000“ 35.4 1.39“ 2 .08“
2058547 12.701 – 19.050 .50005 – .75000“ 35.4 1.39“ 2 .08“ A
2058548 19.051 – 25.400 .75005 – 1.00000“ 48.3 1.90“ 2 .08“
2058549 25.401 – 38.000 1.00005 – 1.50000“ 48.3 1.90“ 2 .08“
2058550 38.000 – 63.000 1.50000 – 2.50000“ 46.7 1.84“ 2 .08“
2058551– 63.000 – 114.300 2.50000 – 4.50000“ 46.7 1.84“ 2 .08“
2058555 B
2058556– 114.300 – 228.300 4.50000 – 9.00000“ 46.7 1.84“ 2 .08“
2058559

ACCESSORIES
Order no. Product name Type

4337620 Digital indicator, 0.0005 mm, 12.5 mm 1086 R
4337624 Digital indicator, 0.0005 mm, 12.5 mm 1086 Ri
4337660 Digital indicator, 0.0005 mm, 12.5 mm 1087 R
4337663 Digital indicator, 0.0005 mm, 12.5 mm 1087 Ri
Maxµm III 2050829 Bore gage handle with indicator 221, grad. .0001” 550P– 10
2050830 Bore gage handle with indicator P1I, grad. 0,002 mm 550P– 20
2203139 Adapter for handle HA– 88 AT– 124
2203140 Adapter for mounting Maxµm III with protective housing to bench stand BA– 26 AT– 125
2204032 Protective housing for Maxµm III with output B– 12668
2204599 Base with tooling plate, plug to be mounted vertically or horizontally BA– 100
2051697 Bore gage handle with digital indicator µMaxum II, res. 0,001mm / .00005” EDI– 550P– 10
2051698 Bore gage handle with digital indicator µMaxum II, res. 0,0005mm / .00002” EDI– 550P– 20
2213388 Handle assembly (inductive probe, HA– 88 handle, AD– 140 Adapter) with 1,5m/5ft. straight EHA– 1145
cable
1086 R;1086 2213389 Handle assembly (inductive probe, HA– 88 handle, AD– 140 Adapter) with 3m/11ft. coiled EHA– 1146
R-HR;1086 ZR cable
2214119 Adapter set to mount Maxµm III indicator with 3/8” stem to a Dimentron plug EKT– 1120-W1
2214120 Adapter set to mount Maxµm III indicator with 8 mm stem to a Dimentron plug EKT– 1120-W2
2214121 Adapter set to mount dial indicators or µMaxum II with 3/8” stem to a Dimentron plug EKT– 1120-W3
2214122 Adapter set to mount dial indicators or µMaxum II with 8 mm stem to a Dimentron plug EKT– 1120-W4
2214124 Adapter set to mount dial comparators 1002 – 1010 with 8 mm stem to a Dimentron plug EKT– 1120-W6
2218595 Depth extension 50mm / 1.97” for plug diameter 9,5 – 19,05mm /.375 – .75” EX– 204
2218596 Depth extension 100mm / 3.94” for plug diameter 9,5 – 19,05mm /.375 – .75” EX– 205
2218597 Depth extension 200mm / 7.87” for plug diameter 9,5 – 19,05mm /.375 – .75” EX– 206
1086 Ri 2218600 Depth extension 50mm / 1.97” for plug diameter 19,05mm /.75” and above EX– 210
2218601 Depth extension 100mm / 3.94” for plug diameter 19,05mm /.75” and above EX– 211
2218602 Depth extension 200mm / 7.87” for plug diameter 19,05mm /.75” and above EX– 212
2220037 Handle for Maxµm III digital transducers HA– 141
2220100 Handle to be mounted on protective housings EHG– 1172 and EHG– 1198 via Adapter HA– 88
AT– 124
2033101 Inductive digital comparator, ±1 mm/± .040”, no output Maxµm III
2033111 Inductive digital comparator, ±1 mm/± .040”, with output (6-pin) Maxµm III
2033201 Inductive digital comparator, ± mm/± .040”, with data output (6-pin), “0” at 6 o’clock Maxµm III
1087 R;1087 position
R-HR;1087 ZR

1087 Ri

EDI– 550P– 10 HA– 141 BA– 100

MaraMeter | Indicating Measuring Instruments 395
