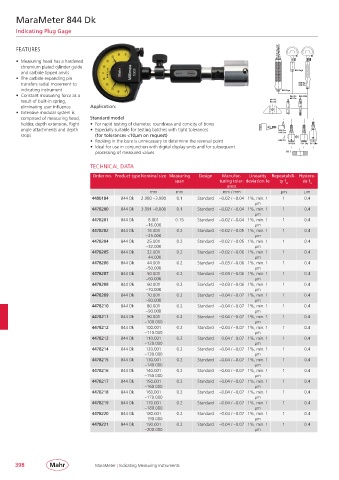

MaraMeter 844 Dk

Indicating Plug Gage

FEATURES

• Measuring head has a hardened
chromium plated cylinder guide

and carbide tipped anvils
• The carbide expanding pin
transfers radial movement to

indicating instrument
• Constant measuring force as a

result of built-in spring,

eliminating user influence Application:
• Extensive modular system is
composed of measuring head, Standard model
holder, depth extension, Right • For rapid testing of diameter, roundness and conicity of bores
angle attachments and depth • Especially suitable for testing batches with tight tolerances

stops (for tolerances <10µm on request)
• Rocking in the bore is unnecessary to determine the reversal point
• Ideal for use in conjunction with digital display units and for subsequent
processing of measured values
TECHNICAL DATA
Order no. Product type Nominal size Measuring Design Manufac- Linearity Repeatabili- Hystere-
span turing toler- deviation fe ty f w sis f u
ance
mm mm mm / mm µm µm
4480184 844 Dk 2.980 – 3.990 0.1 Standard – 0.02 / – 0.04 1%, min. 1 1 0.4
µm
4478200 844 Dk 3.991 – 8.000 0.1 Standard – 0.02 / – 0.04 1%, min. 1 1 0.4
µm
4478201 844 Dk 8.001 0.15 Standard – 0.02 / – 0.04 1%, min. 1 1 0.4
– 16.000 µm
4478202 844 Dk 16.001 0.2 Standard – 0.02 / – 0.05 1%, min. 1 1 0.4
– 25.000 µm
4478204 844 Dk 25.001 0.2 Standard – 0.02 / – 0.05 1%, min. 1 1 0.4
– 32.000 µm
4478205 844 Dk 32.001 0.2 Standard – 0.02 / – 0.06 1%, min. 1 1 0.4
– 44.000 µm
4478206 844 Dk 44.001 0.2 Standard – 0.03 / – 0.06 1%, min. 1 1 0.4
– 50.000 µm
4478207 844 Dk 50.001 0.2 Standard – 0.03 / – 0.06 1%, min. 1 1 0.4
– 60.000 µm
4478208 844 Dk 60.001 0.2 Standard – 0.03 / – 0.06 1%, min. 1 1 0.4
– 70.000 µm
4478209 844 Dk 70.001 0.2 Standard – 0.04 / – 0.07 1%, min. 1 1 0.4
– 80.000 µm
4478210 844 Dk 80.001 0.2 Standard – 0.04 / – 0.07 1%, min. 1 1 0.4
– 90.000 µm
4478211 844 Dk 90.001 0.2 Standard – 0.04 / – 0.07 1%, min. 1 1 0.4
– 100.000 µm
4478212 844 Dk 100.001 0.2 Standard – 0.04 / – 0.07 1%, min. 1 1 0.4
– 110.000 µm
4478213 844 Dk 110.001 0.2 Standard – 0.04 / – 0.07 1%, min. 1 1 0.4
– 120.000 µm
4478214 844 Dk 120.001 0.2 Standard – 0.04 / – 0.07 1%, min. 1 1 0.4
– 130.000 µm
4478215 844 Dk 130.001 0.2 Standard – 0.04 / – 0.07 1%, min. 1 1 0.4
– 140.000 µm
4478216 844 Dk 140.001 0.2 Standard – 0.04 / – 0.07 1%, min. 1 1 0.4
– 150.000 µm
4478217 844 Dk 150.001 0.2 Standard – 0.04 / – 0.07 1%, min. 1 1 0.4
– 160.000 µm
4478218 844 Dk 160.001 0.2 Standard – 0.04 / – 0.07 1%, min. 1 1 0.4
– 170.000 µm
4478219 844 Dk 170.001 0.2 Standard – 0.04 / – 0.07 1%, min. 1 1 0.4
– 180.000 µm
4478220 844 Dk 180.001 0.2 Standard – 0.04 / – 0.07 1%, min. 1 1 0.4
– 190.000 µm
4478221 844 Dk 190.001 0.2 Standard – 0.04 / – 0.07 1%, min. 1 1 0.4
– 200.000 µm

398 MaraMeter | Indicating Measuring Instruments
