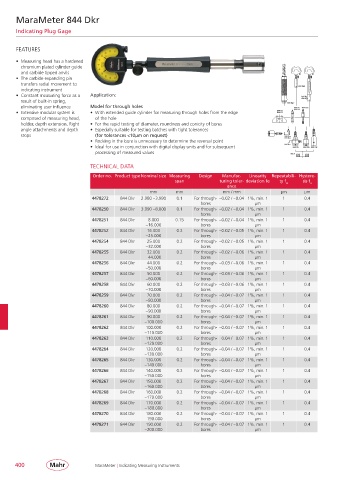

MaraMeter 844 Dkr

Indicating Plug Gage

FEATURES

• Measuring head has a hardened
chromium plated cylinder guide
and carbide tipped anvils
• The carbide expanding pin
transfers radial movement to

indicating instrument
• Constant measuring force as a Application:

result of built-in spring,
eliminating user influence Model for through holes
• Extensive modular system is • With extended guide cylinder for measuring through holes from the edge

composed of measuring head, of the hole
holder, depth extension, Right • For the rapid testing of diameter, roundness and conicity of bores
angle attachments and depth • Especially suitable for testing batches with tight tolerances
stops (for tolerances <10µm on request)

• Rocking in the bore is unnecessary to determine the reversal point

• Ideal for use in conjunction with digital display units and for subsequent
processing of measured values
TECHNICAL DATA
Order no. Product type Nominal size Measuring Design Manufac- Linearity Repeatabili- Hystere-
span turing toler- deviation fe ty f w sis f u
ance
mm mm mm / mm µm µm
4478272 844 Dkr 2.980 – 3.990 0.1 For through- – 0.02 / – 0.04 1%, min. 1 1 0.4
bores µm
4478250 844 Dkr 3.990 – 8.000 0.1 For through- – 0.02 / – 0.04 1%, min. 1 1 0.4
bores µm
4478251 844 Dkr 8.000 0.15 For through- – 0.02 / – 0.04 1%, min. 1 1 0.4
– 16.000 bores µm
4478252 844 Dkr 16.000 0.2 For through- – 0.02 / – 0.05 1%, min. 1 1 0.4
– 25.000 bores µm
4478254 844 Dkr 25.000 0.2 For through- – 0.02 / – 0.05 1%, min. 1 1 0.4
– 32.000 bores µm
4478255 844 Dkr 32.000 0.2 For through- – 0.02 / – 0.06 1%, min. 1 1 0.4
– 44.000 bores µm
4478256 844 Dkr 44.000 0.2 For through- – 0.03 / – 0.06 1%, min. 1 1 0.4
– 50.000 bores µm
4478257 844 Dkr 50.000 0.2 For through- – 0.03 / – 0.06 1%, min. 1 1 0.4
– 60.000 bores µm
4478258 844 Dkr 60.000 0.2 For through- – 0.03 / – 0.06 1%, min. 1 1 0.4
– 70.000 bores µm
4478259 844 Dkr 70.000 0.2 For through- – 0.04 / – 0.07 1%, min. 1 1 0.4
– 80.000 bores µm
4478260 844 Dkr 80.000 0.2 For through- – 0.04 / – 0.07 1%, min. 1 1 0.4
– 90.000 bores µm
4478261 844 Dkr 90.000 0.2 For through- – 0.04 / – 0.07 1%, min. 1 1 0.4
– 100.000 bores µm
4478262 844 Dkr 100.000 0.2 For through- – 0.04 / – 0.07 1%, min. 1 1 0.4
– 110.000 bores µm
4478263 844 Dkr 110.000 0.2 For through- – 0.04 / – 0.07 1%, min. 1 1 0.4
– 120.000 bores µm
4478264 844 Dkr 120.000 0.2 For through- – 0.04 / – 0.07 1%, min. 1 1 0.4
– 130.000 bores µm
4478265 844 Dkr 130.000 0.2 For through- – 0.04 / – 0.07 1%, min. 1 1 0.4
– 140.000 bores µm
4478266 844 Dkr 140.000 0.2 For through- – 0.04 / – 0.07 1%, min. 1 1 0.4
– 150.000 bores µm
4478267 844 Dkr 150.000 0.2 For through- – 0.04 / – 0.07 1%, min. 1 1 0.4
– 160.000 bores µm
4478268 844 Dkr 160.000 0.2 For through- – 0.04 / – 0.07 1%, min. 1 1 0.4
– 170.000 bores µm
4478269 844 Dkr 170.000 0.2 For through- – 0.04 / – 0.07 1%, min. 1 1 0.4
– 180.000 bores µm
4478270 844 Dkr 180.000 0.2 For through- – 0.04 / – 0.07 1%, min. 1 1 0.4
– 190.000 bores µm
4478271 844 Dkr 190.000 0.2 For through- – 0.04 / – 0.07 1%, min. 1 1 0.4
– 200.000 bores µm

400 MaraMeter | Indicating Measuring Instruments
