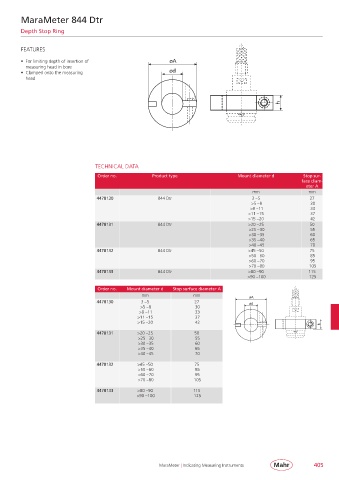

MaraMeter 844 Dtr

Depth Stop Ring

FEATURES

• For limiting depth of insertion of øA
measuring head in bore
• Clamped onto the measuring ød
head

h

TECHNICAL DATA
Order no. Product type Mount diameter d Stop sur-
face diam-
eter A
mm mm
4478130 844 Dtr 3 – 5 27
>5 – 8 30
>8 – 11 33
>11 – 15 37
>15 – 20 42
4478131 844 Dtr >20 – 25 50
>25 – 30 55
>30 – 35 60
>35 – 40 65
>40 – 45 70
4478132 844 Dtr >45 – 50 75
>50 – 60 85
>60 – 70 95
>70 – 80 105
4478133 844 Dtr >80 – 90 115
>90 – 100 125

Order no. Mount diameter d Stop surface diameter A
mm mm øA
4478130 3 – 5 27 ød
>5 – 8 30
>8 – 11 33
>11 – 15 37
>15 – 20 42
h
4478131 >20 – 25 50
>25 – 30 55
>30 – 35 60
>35 – 40 65
>40 – 45 70
4478132 >45 – 50 75
>50 – 60 85
>60 – 70 95
>70 – 80 105
4478133 >80 – 90 115
>90 – 100 125

MaraMeter | Indicating Measuring Instruments 405
