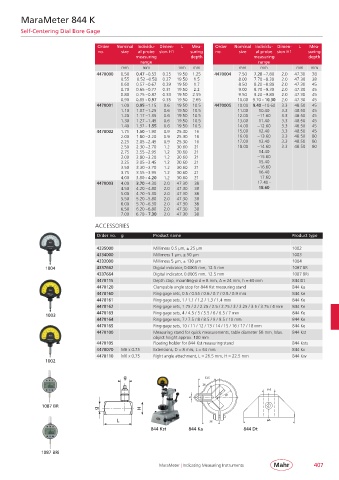

MaraMeter 844 K

Self-Centering Dial Bore Gage

Order Nominal Individu- Dimen- L Mea- Order Nominal Individu- Dimen- L Mea-
no. size al probe sion H1 suring no. size al probe sion H1 suring
measuring depth measuring depth
range range
mm mm mm mm mm mm mm mm
4470000 0.50 0.47 – 0.53 0.25 19.50 1.25 4470004 7.50 7.20 – 7.80 2.0 47.30 38
0.55 0.52 – 0.58 0.27 19.50 1.5 8.00 7.70 – 8.30 2.0 47.30 38
0.60 0.57 – 0.67 0.29 19.50 1.7 8.50 8.20 – 8.80 2.0 47.30 45
0.70 0.65 – 0.77 0.31 19.50 2.2 9.00 8.70 – 9.30 2.0 47.30 45
0.80 0.75 – 0.87 0.33 19.50 2.55 9.50 9.20 – 9.80 2.0 47.30 45
0.90 0.85 - 0.97 0.35 19.50 2.65 10.00 9.70 - 10.30 2.0 47.30 45
4470001 1.00 0.95 – 1.15 0.6 19.50 10.5 4470005 10.00 9.40 – 10.60 3.3 48.50 45
1.10 1.07 – 1.25 0.6 19.50 10.5 11.00 10.40 3.3 48.50 45
1.20 1.17 – 1.35 0.6 19.50 10.5 12.00 – 11.60 3.3 48.50 45
1.30 1.27 – 1.45 0.6 19.50 10.5 13.00 11.40 3.3 48.50 45
1.40 1.37 - 1.55 0.6 19.50 10.5 14.00 – 12.60 3.3 48.50 45
4470002 1.75 1.50 – 1.90 0.9 25.30 16 15.00 12.40 3.3 48.50 45
2.00 1.80 – 2.20 0.9 25.30 16 16.00 – 13.60 3.3 48.50 80
2.25 2.05 – 2.45 0.9 25.30 16 17.00 13.40 3.3 48.50 80
2.50 2.30 – 2.70 1.2 30.60 21 18.00 – 14.60 3.3 48.50 80
2.75 2.55 – 2.95 1.2 30.60 21 14.40
3.00 2.80 – 3.20 1.2 30.60 21 – 15.60
3.25 3.05 – 3.45 1.2 30.60 21 15.40
3.50 3.30 – 3.70 1.2 30.60 21 – 16.60
3.75 3.55 – 3.95 1.2 30.60 21 16.40
4.00 3.80 - 4.20 1.2 30.60 21 – 17.60
4470003 4.00 3.70 – 4.30 2.0 47.30 38 17.40 -
4.50 4.20 – 4.80 2.0 47.30 38 18.60
5.00 4.70 – 5.30 2.0 47.30 38
5.50 5.20 – 5.80 2.0 47.30 38
6.00 5.70 – 6.30 2.0 47.30 38
6.50 6.20 – 6.80 2.0 47.30 38
7.00 6.70 - 7.30 2.0 47.30 38

ACCESSORIES
Order no. g Product name Product type

4335000 Millimess 0.5 µm, ± 25 µm 1002
4334000 Millimess 1 µm, ± 50 µm 1003
4333000 Millimess 5 µm, ± 130 µm 1004
1004 4337662 Digital indicator, 0.0005 mm, 12.5 mm 1087 BR
4337664 Digital indicator, 0.0005 mm, 12.5 mm 1087 BRi
4470115 Depth stop, mounting-ø d = 8 mm, A = 24 mm, h = 60 mm 844 Dt
4470120 Clampable angle stop for 844 Kst measuring stand 844 Ka
4470160 Ring gage sets, 0.5 / 0.55 / 0.6 / 0.7 / 0.8 / 0.9 mm 844 Ke
4470161 Ring gage sets, 1 / 1.1 / 1.2 / 1.3 / 1.4 mm 844 Ke
4470162 Ring gage sets, 1.75 / 2 / 2.25 / 2.5 / 2.75 / 3 / 3.25 / 3.5 / 3.75 / 4 mm 844 Ke
4470163 Ring gage sets, 4 / 4.5 / 5 / 5.5 / 6 / 6.5 / 7 mm 844 Ke
1003
4470164 Ring gage sets, 7 / 7.5 / 8 / 8.5 / 9 / 9.5 / 10 mm 844 Ke
4470165 Ring gage sets, 10 / 11 / 12 / 13 / 14 / 15 / 16 / 17 / 18 mm 844 Ke
4470100 Measuring stand for quick measurements, table diameter 58 mm, Max. 844 Kst
object height approx. 100 mm
4470105 Floating holder for 844 Kst measuring stand 844 Ksts
4470070 M6 x 0.75 Extensions, D = 8 mm, L = 64 mm 844 Kv
4470110 M6 x 0.75 Right angle attachment, L = 26.5 mm, H = 22.5 mm 844 Kw
1002

33,5
26
ø d
30 58
6
1087 BR

38 øA
844 Kst 844 Ka 844 Dt

1087 BRi

MaraMeter | Indicating Measuring Instruments 407
