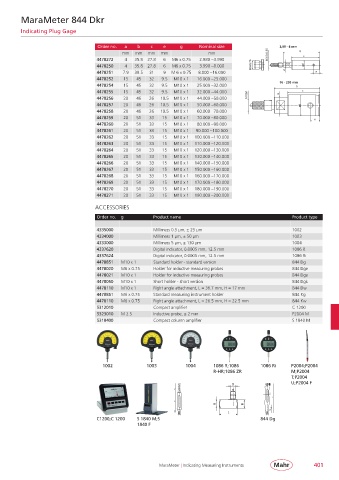

P. 405
MaraMeter 844 Dkr
Indicating Plug Gage
Order no. a b c e g Nominal size 2,98 - 8 mm
mm mm mm mm mm M3,5x0,35 b c
4478272 4 35.8 27.8 6 M6 x 0.75 2.980 – 3.990
4478250 4 35.8 27.8 6 M6 x 0.75 3.990 – 8.000 M6x0,75 ød
4478251 7.9 39.5 31 9 M 6 x 0.75 8.000 – 16.000 a e
4478252 15 45 32 9.5 M10 x 1 16.000 – 25.000
16 - 200 mm
4478254 15 45 32 9.5 M10 x 1 25.000 – 32.000 b
4478255 15 45 32 9.5 M10 x 1 32.000 – 44.000 M10x1 a c
4478256 20 46 26 10.5 M10 x 1 44.000 – 50.000
4478257 20 46 26 10.5 M10 x 1 50.000 – 60.000 ød
4478258 20 46 26 10.5 M10 x 1 60.000 – 70.000
4478259 20 51 33 15 M10 x 1 70.000 – 80.000 e
4478260 20 51 33 15 M10 x 1 80.000 – 90.000
4478261 20 51 33 15 M10 x 1 90.000 – 100.000
4478262 20 51 33 15 M10 x 1 100.000 – 110.000
4478263 20 51 33 15 M10 x 1 110.000 – 120.000
4478264 20 51 33 15 M10 x 1 120.000 – 130.000
4478265 20 51 33 15 M10 x 1 130.000 – 140.000
4478266 20 51 33 15 M10 x 1 140.000 – 150.000
4478267 20 51 33 15 M10 x 1 150.000 – 160.000
4478268 20 51 33 15 M10 x 1 160.000 – 170.000
4478269 20 51 33 15 M10 x 1 170.000 – 180.000
4478270 20 51 33 15 M10 x 1 180.000 – 190.000
4478271 20 51 33 15 M10 x 1 190.000 – 200.000
ACCESSORIES
Order no. g Product name Product type
4335000 Millimess 0.5 µm, ± 25 µm 1002
4334000 Millimess 1 µm, ± 50 µm 1003
4333000 Millimess 5 µm, ± 130 µm 1004
4337620 Digital indicator, 0.0005 mm, 12.5 mm 1086 R
4337624 Digital indicator, 0.0005 mm, 12.5 mm 1086 Ri
4478851 M10 x 1 Standard holder - standard version 844 Dg
4478020 M6 x 0.75 Holder for inductive measuring probes 844 Dge
4478021 M10 x 1 Holder for inductive measuring probes 844 Dge
4478050 M10 x 1 Short holder - short version 844 Dgk
4478110 M10 x 1 Right angle attachment, L = 36.7 mm, H = 17 mm 844 Dw
4470851 M6 x 0.75 Standard measuring instrument holder 844 Kg
4470110 M6 x 0.75 Right angle attachment, L = 26.5 mm, H = 22.5 mm 844 Kw
5312010 Compact amplifier C 1200
5323010 M 2.5 Inductive probe, ± 2 mm P2004 M
5318400 Compact column amplifier S 1840 M
1002 1003 1004 1086 R;1086 1086 Ri P2004;P2004
R-HR;1086 ZR M;P2004
T;P2004
U;P2004 F
C1200;C 1200 S 1840 M;S 844 Dg
1840 F
MaraMeter | Indicating Measuring Instruments 401
