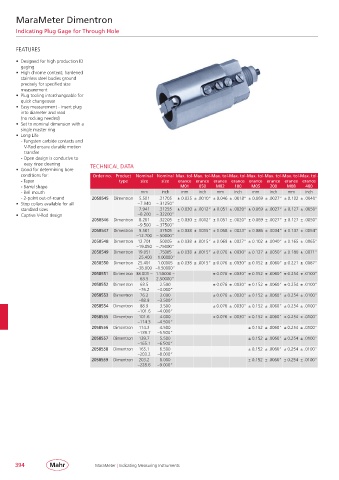

MaraMeter Dimentron

Indicating Plug Gage for Through Hole

FEATURES

• Designed for high production ID
gaging
• High chrome content; hardened
stainless steel bodies ground
precisely for specified size
measurement
• Plug tooling interchangeable for
quick changeover
• Easy measurement - insert plug
into diameter and read
(no rocking needed)
• Set to nominal dimension with a
single master ring
• Long Life
- Tungsten carbide contacts and
V-Rod ensure durable motion
transfer
- Open design is conducive to
easy rinse cleaning TECHNICAL DATA
• Good for determining bore
conditions for: Order no. Product Nominal Nominal Max. tol-Max. tol-Max. tol-Max. tol-Max. tol-Max. tol-Max. tol-Max. tol-
- Taper type size size erance erance erance erance erance erance erance erance
- Barrel shape M01 050 M02 100 M05 200 M08 400
- Bell mouth mm inch mm inch mm inch mm inch mm inch
- 2-point out-of-round 2058545 Dimentron 5.501 .21705 ± 0.025 ± .0010“ ± 0.046 ± .0018“ ± 0.069 ± .0027“ ± 0.102 ± .0040“
• Stop collars available for all – 7.940 – .31250“
standard sizes 7.941 .31255 ± 0.030 ± .0012“ ± 0.051 ± .0020“ ± 0.069 ± .0027“ ± 0.127 ± .0050“
• Captive V-Rod design – 8.200 – .32200“
2058546 Dimentron 8.201 .32205 ± 0.030 ± .0012“ ± 0.051 ± .0020“ ± 0.069 ± .0027“ ± 0.127 ± .0050“
– 9.500 – .37500“
2058547 Dimentron 9.501 .37505 ± 0.038 ± .0015“ ± 0.058 ± .0023“ ± 0.086 ± .0034“ ± 0.137 ± .0054“
– 12.700 – .50000“
2058548 Dimentron 12.701 .50005 ± 0.038 ± .0015“ ± 0.069 ± .0027“ ± 0.102 ± .0040“ ± 0.165 ± .0065“
– 19.050 – .75000“
2058549 Dimentron 19.051 .75005 ± 0.038 ± .0015“ ± 0.076 ± .0030“ ± 0.127 ± .0050“ ± 0.180 ± .0071“
– 25.400 – 1.00000“
2058550 Dimentron 25.401 1.00005 ± 0.038 ± .0015“ ± 0.076 ± .0030“ ± 0.152 ± .0060“ ± 0.221 ± .0087“
– 38.000 – 1.50000“
2058551 Dimentron 38.001 – 1.50000 – ± 0.076 ± .0030“ ± 0.152 ± .0060“ ± 0.254 ± .0100“
63.5 2.50000“
2058552 Dimentron 63.5 2.500 ± 0.076 ± .0030“ ± 0.152 ± .0060“ ± 0.254 ± .0100“
–76.2 –3.000“
2058553 Dimentron 76.2 3.000 ± 0.076 ± .0030“ ± 0.152 ± .0060“ ± 0.254 ± .0100“
–88.9 –3.500“
2058554 Dimentron 88.9 3.500 ± 0.076 ± .0030“ ± 0.152 ± .0060“ ± 0.254 ± .0100“
–101.6 –4.000“
2058555 Dimentron 101.6 4.000 ± 0.076 ± .0030“ ± 0.152 ± .0060“ ± 0.254 ± .0100“
–114.3 –4.500“
2058556 Dimentron 114.3 4.500 ± 0.152 ± .0060“ ± 0.254 ± .0100“
–139.7 –5.500“
2058557 Dimentron 139.7 5.500 ± 0.152 ± .0060“ ± 0.254 ± .0100“
–165.1 –6.500“
2058558 Dimentron 165.1 6.500 ± 0.152 ± .0060“ ± 0.254 ± .0100“
–203.2 –8.000“
2058559 Dimentron 203.2 8.000 ± 0.152 ± .0060“ ± 0.254 ± .0100“
–228.6 –9.000“

394 MaraMeter | Indicating Measuring Instruments
