Dimentron  Plug Inside Diameter Gages
                         ®

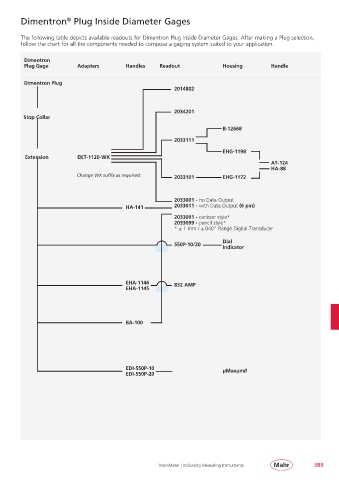

        The following table depicts available readouts for Dimentron Plug Inside Diameter Gages. After making a Plug selection,
        follow the chart for all the components needed to compose a gaging system suited to your application.

          Dimentron
          Plug Gage         Adapters         Handles     Readout               Housing          Handle


            Dimentron Plug
                                                              2014802



                                                              2034201
          Stop Collar

                                                                               B-12668
                                                              2033111
                                                                               EHG-1198
           Extension        EKT-1120-WX
                                                                                                AT-124
                                                                                                HA-88
                            Change WX suffix as required:     2033101          EHG-1172



                                                              2033001 - no Data Output
                                               HA-141         2033011 - with Data Output (6 pin)

                                                              2033091 - canister style*
                                                              2033099 - pencil style*
                                                              * ± 1 mm / ±.040” Range Digital Transducer

                                                                               Dial
                                                              550P-10/20       Indicator






                                             EHA-1146         832 AMP
                                             EHA-1145






                                             BA-100







                                             EDI-550P-10                       µMaxµmII
                                             EDI-550P-20
