P. 390

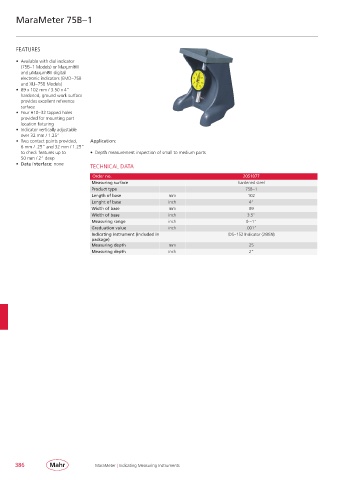

MaraMeter 75B– 1
FEATURES
• Available with dial indicator
(75B– 1 Models) or Maxμm®III
and μMaxμm®II digital
electronic indicators (EMD– 75B
and XLI– 75B Models)
• 89 x 102 mm / 3.50 x 4“
hardened, ground work surface
provides excellent reference
surface
• Four #10– 32 tapped holes
provided for mounting part
location fixturing
• Indicator vertically adjustable
over 32 mm / 1.25“
• Two contact points provided, Application:
6 mm / .25“ and 32 mm / 1.25“
to check features up to • Depth measurement inspection of small to medium parts
50 mm / 2“ deep
• Data interface: none
TECHNICAL DATA
Order no. 2051077
Measuring surface hardened steel
Product type 75B– 1
Length of base mm 102
Lenght of base inch 4”
Width of base mm 89
Width of base inch 3.5”
Measuring range inch 0 – 1”
Graduation value inch .001”
Indicating instrument (included in IDS– 152 Indicator (28ISN)
package)
Measuring depth mm 25
Measuring depth inch 2”
386 MaraMeter | Indicating Measuring Instruments
