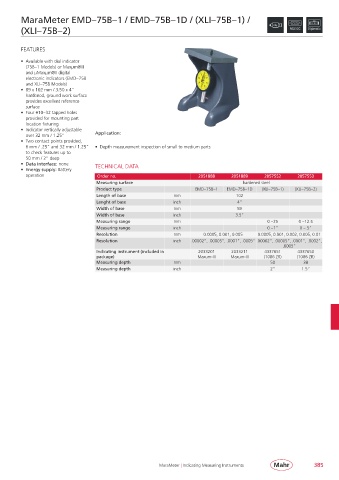

MaraMeter EMD– 75B– 1 / EMD– 75B– 1D / (XLI– 75B– 1) /

(XLI– 75B– 2)

FEATURES

• Available with dial indicator
(75B– 1 Models) or Maxμm®III
and μMaxμm®II digital
electronic indicators (EMD– 75B
and XLI– 75B Models)
• 89 x 102 mm / 3.50 x 4“
hardened, ground work surface
provides excellent reference
surface
• Four #10– 32 tapped holes
provided for mounting part
location fixturing
• Indicator vertically adjustable
over 32 mm / 1.25“ Application:
• Two contact points provided,
6 mm / .25“ and 32 mm / 1.25“ • Depth measurement inspection of small to medium parts
to check features up to
50 mm / 2“ deep
• Data interface: none TECHNICAL DATA
• Energy supply: Battery
operation Order no. 2051888 2051889 2057552 2057553
Measuring surface hardened steel
Product type EMD– 75B– 1 EMD– 75B– 1D (XLI– 75B– 1) (XLI– 75B– 2)
Length of base mm 102
Lenght of base inch 4”
Width of base mm 89
Width of base inch 3.5”
Measuring range mm 0 – 25 0 – 12.5
Measuring range inch 0 – 1” 0 – .5”
Resolution mm 0.0005, 0.001, 0.005 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inch .00002”, .00005”, .0001”, .0005” .00002”, .00005”, .0001”, .0002”,
.0005”
Indicating instrument (included in 2033201 2033211 4337651 4337650
package) Maxum-III Maxum-III (1086 ZR) (1086 ZR)
Measuring depth mm 50 38
Measuring depth inch 2” 1.5”

MaraMeter | Indicating Measuring Instruments 385
