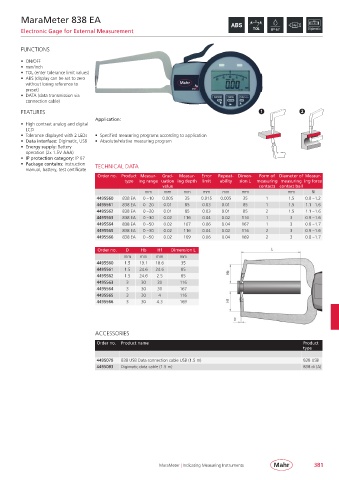

MaraMeter 838 EA

Electronic Gage for External Measurement

FUNCTIONS

• ON/OFF
• mm/inch
• TOL (enter tolerance limit values)
• ABS (display can be set to zero
without losing reference to
preset)
• DATA (data transmission via
connection cable)
FEATURES 1 2
Application:
• High contrast analog and digital
LCD
• Tolerance displayed with 2 LEDs • Specified measuring programs according to application
• Data interface: Digimatic, USB • Absolute/relative measuring program
• Energy supply: Battery
operation (2x 1.5V AAA)
• IP protection category: IP 67
• Package contains: instruction TECHNICAL DATA
manual, battery, test certificate
Order no. Product Measur- Grad- Measur- Error Repeat- Dimen- Form of Diameter of Measur-
type ing range uation ing depth limit ability sion L measuring measuring ing force
value contacts contact ball
mm mm mm mm mm mm mm N
4495560 838 EA 0 – 10 0.005 35 0.015 0.005 35 1 1.5 0.8 – 1.2
4495561 838 EA 0 – 20 0.01 85 0.03 0.01 85 1 1.5 1.1 – 1.6
4495562 838 EA 0 – 20 0.01 85 0.03 0.01 85 2 1.5 1.1 – 1.6
4495563 838 EA 0 – 30 0.02 116 0.04 0.02 116 1 3 0.9 – 1.6
4495564 838 EA 0 – 50 0.02 167 0.06 0.04 167 1 3 0.8 – 1.7
4495565 838 EA 0 – 30 0.02 116 0.04 0.02 116 2 3 0.9 – 1.6
4495566 838 EA 0 – 50 0.02 169 0.06 0.04 169 2 3 0.8 – 1.7

Order no. D Hb Hf Dimension L
mm mm mm mm
4495560 1.5 19.1 18.6 35
4495561 1.5 24.6 24.6 85
4495562 1.5 24.6 2.5 85
4495563 3 30 30 116
4495564 3 30 30 167
4495565 3 30 4 116
4495566 3 30 4.3 169

ACCESSORIES

Order no. Product name Product
type

4495079 838 USB Data connection cable USB (1.5 m) 838 USB
4495083 Digimatic data cable (1.5 m) 838 di (A)

MaraMeter | Indicating Measuring Instruments 381
