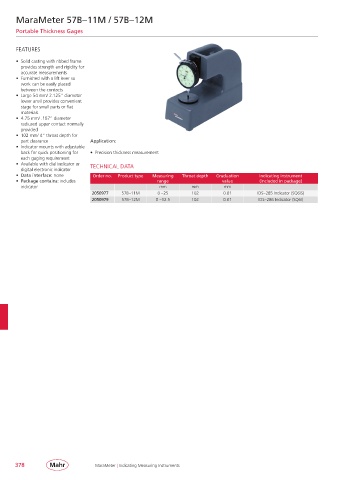

MaraMeter 57B– 11M / 57B– 12M

Portable Thickness Gages

FEATURES

• Solid casting with ribbed frame
provides strength and rigidity for
accurate measurements
• Furnished with a lift lever so
work can be easily placed
between the contacts
• Large 54 mm/ 2.125“ diameter
lower anvil provides convenient
stage for small parts or flat
materials
• 4.75 mm/ .187“ diameter
radiused upper contact normally
provided
• 102 mm/ 4“ throat depth for
part clearance Application:
• Indicator mounts with adjustable
back for quick positioning for • Precision thickness measurement
each gaging requirement
• Available with dial indicator or TECHNICAL DATA
digital electronic indicator
• Data interface: none Order no. Product type Measuring Throat depth Graduation Indicating instrument
• Package contains: includes range value (included in package)
indicator mm mm mm
2050977 57B– 11M 0 – 25 102 0.01 IDS– 285 Indicator (SQ6IS)
2050979 57B– 12M 0 – 12.5 102 0.01 IDS– 286 Indicator (SQ6I)
