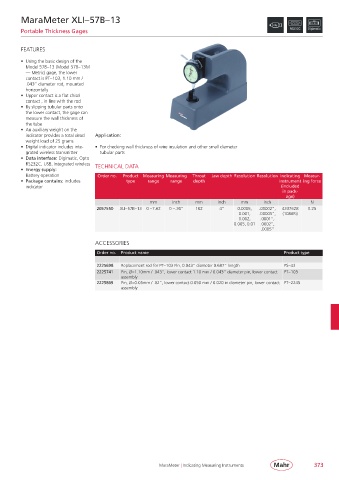

MaraMeter XLI– 57B– 13

Portable Thickness Gages

FEATURES

• Using the basic design of the
Model 57B– 13 (Model 57B– 13M
— Metric) gage, the lower
contact is PT– 103, 1.10 mm /
.043” diameter rod, mounted
horizontally
• Upper contact is a flat chisel
contact , in line with the rod
• By slipping tubular parts onto
the lower contact, the gage can
measure the wall thickness of
the tube
• An auxiliary weight on the
indicator provides a total dead Application:
weight load of 25 grams
• Digital indicator includes inte- • For checking wall thickness of wire insulation and other small diameter
grated wireless transmitter tubular parts
• Data interface: Digimatic, Opto
RS232C, USB, Integrated wireless TECHNICAL DATA
• Energy supply:
Battery operation Order no. Product Measuring Measuring Throat Jaw depth Resolution Resolution Indicating Measur-
• Package contains: includes type range range depth instrument ing force
indicator (included
in pack-
age)
mm inch mm inch mm inch N
2057550 XLI– 57B– 13 0 – 7.62 0 – .30” 102 4” 0.0005, .00002”, 4337628 0.25
0.001, .00005”, (1086Ri)
0.002, .0001”,
0.005, 0.01 .0002”,
.0005”
ACCESSORIES

Order no. Product name Product type

2225698 Replacement rod for PT– 103 Pin, 0.043” diameter 0.687” length PS– 43
2225741 Pin, Ø=1.10mm / .043”, lower contact 1.10 mm / 0.043” diameter pin, lower contact PT– 103
assembly
2225869 Pin, Ø=0.05mm / .02”, lower contact 0.050 mm / 0.020 in diameter pin, lower contact PT– 2245
assembly
