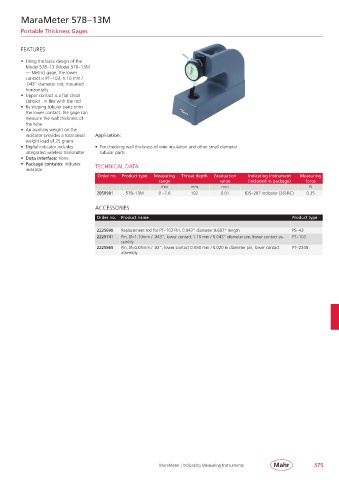

MaraMeter 57B– 13M

Portable Thickness Gages

FEATURES

• Using the basic design of the
Model 57B– 13 (Model 57B– 13M
— Metric) gage, the lower
contact is PT– 103, 1.10 mm /
.043” diameter rod, mounted
horizontally
• Upper contact is a flat chisel
contact , in line with the rod
• By slipping tubular parts onto
the lower contact, the gage can
measure the wall thickness of
the tube
• An auxiliary weight on the
indicator provides a total dead Application:
weight load of 25 grams
• Digital indicator includes • For checking wall thickness of wire insulation and other small diameter
integrated wireless transmitter tubular parts
• Data interface: none
• Package contains: includes TECHNICAL DATA
indicator
Order no. Product type Measuring Throat depth Graduation Indicating instrument Measuring
range value (included in package) force
mm mm mm N
2050981 57B– 13M 0 – 7.6 102 0.01 IDS– 287 indicator (26I-RC) 0.25

ACCESSORIES
Order no. Product name Product type

2225698 Replacement rod for PT– 103 Pin, 0.043” diameter 0.687” length PS– 43
2225741 Pin, Ø=1.10mm / .043”, lower contact 1.10 mm / 0.043” diameter pin, lower contact as- PT– 103
sembly
2225869 Pin, Ø=0.05mm / .02”, lower contact 0.050 mm / 0.020 in diameter pin, lower contact PT– 2245
assembly

MaraMeter | Indicating Measuring Instruments 375
