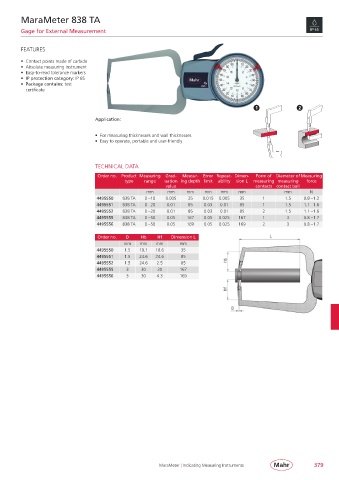

MaraMeter 838 TA

Gage for External Measurement

FEATURES

• Contact points made of carbide
• Absolute measuring instrument
• Easy-to-read tolerance markers
• IP protection category: IP 65
• Package contains: test
certificate

1 2

Application:

• For measuring thicknesses and wall thicknesses
• Easy to operate, portable and user-friendly

TECHNICAL DATA
Order no. Product Measuring Grad- Measur- Error Repeat- Dimen- Form of Diameter of Measuring
type range uation ing depth limit ability sion L measuring measuring force
value contacts contact ball
mm mm mm mm mm mm mm N
4495550 838 TA 0 – 10 0.005 35 0.015 0.005 35 1 1.5 0.8 – 1.2
4495551 838 TA 0 – 20 0.01 85 0.03 0.01 85 1 1.5 1.1 – 1.6
4495552 838 TA 0 – 20 0.01 85 0.03 0.01 85 2 1.5 1.1 – 1.6
4495555 838 TA 0 – 50 0.05 167 0.05 0.025 167 1 3 0.8 – 1.7
4495556 838 TA 0 – 50 0.05 169 0.05 0.025 169 2 3 0.8 – 1.7

Order no. D Hb Hf Dimension L
mm mm mm mm
4495550 1.5 19.1 18.6 35
4495551 1.5 24.6 24.6 85
4495552 1.5 24.6 2.5 85
4495555 3 30 30 167
4495556 3 30 4.3 169
