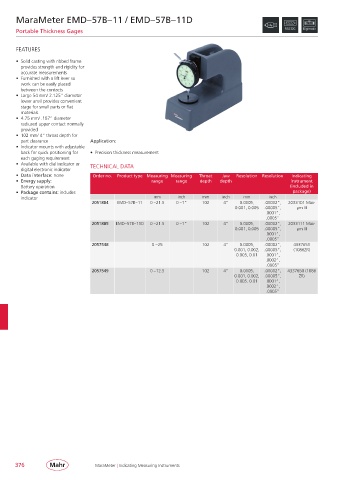

MaraMeter EMD– 57B– 11 / EMD– 57B– 11D

Portable Thickness Gages

FEATURES

• Solid casting with ribbed frame
provides strength and rigidity for
accurate measurements
• Furnished with a lift lever so
work can be easily placed
between the contacts
• Large 54 mm/ 2.125“ diameter
lower anvil provides convenient
stage for small parts or flat
materials
• 4.75 mm/ .187“ diameter
radiused upper contact normally
provided
• 102 mm/ 4“ throat depth for
part clearance Application:
• Indicator mounts with adjustable
back for quick positioning for • Precision thickness measurement
each gaging requirement
• Available with dial indicator or TECHNICAL DATA
digital electronic indicator
• Data interface: none Order no. Product type Measuring Measuring Throat Jaw Resolution Resolution Indicating
• Energy supply: range range depth depth instrument
Battery operation (included in
• Package contains: includes package)
indicator mm inch mm inch mm inch
2051884 EMD– 57B– 11 0 – 21.5 0 – 1” 102 4” 0.0005, .00002”, 2033101 Max-
0.001, 0.005 .00005”, µm III
.0001”,
.0005”
2051885 EMD– 57B– 11D 0 – 21.5 0 – 1” 102 4” 0.0005, .00002”, 2033111 Max-
0.001, 0.005 .00005”, µm III
.0001”,
.0005”
2057548 0 – 25 102 4” 0.0005, .00002”, 4337651
0.001, 0.002, .00005”, (1086ZR)
0.005, 0.01 .0001”,
.0002”,
.0005”
2057549 0 – 12.5 102 4” 0.0005, .00002”, 4337650 (1086
0.001, 0.002, .00005”, ZR)
0.005, 0.01 .0001”,
.0002”,
.0005”
