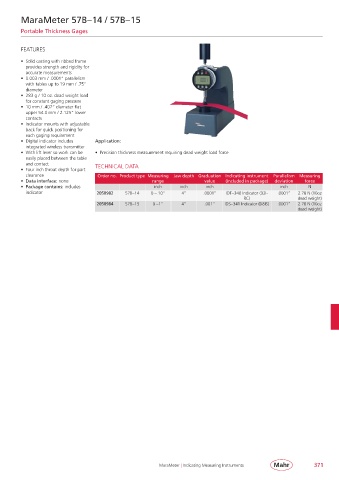

MaraMeter 57B– 14 / 57B– 15

Portable Thickness Gages

FEATURES

• Solid casting with ribbed frame
provides strength and rigidity for
accurate measurements
• 0.003 mm / .0001“ parallelism
with tables up to 19 mm / .75“
diameter
• 283 g / 10 oz. dead weight load
for constant gaging pressure
• 10 mm / .407“ diameter flat
upper 54.0 mm / 2.125“ lower
contacts
• Indicator mounts with adjustable
back for quick positioning for
each gaging requirement
• Digital indicator includes Application:
integrated wireless transmitter
• With lift lever so work can be • Precision thickness measurement requiring dead weight load force
easily placed between the table
and contact TECHNICAL DATA
• Four inch throat depth for part
clearance Order no. Product type Measuring Jaw depth Graduation Indicating instrument Parallelism Measuring
• Data interface: none range value (included in package) deviation force
• Package contains: includes inch inch inch inch N
indicator 2050982 57B– 14 0 – .10” 4” .0001’’ IDT– 340 Indicator (32I- .0001” 2.78 N (10oz
RC) dead weight)
2050984 57B– 15 0 – 1” 4” .001” IDS– 341 Indicator (D8IS) .0001” 2.78 N (10oz
dead weight)
