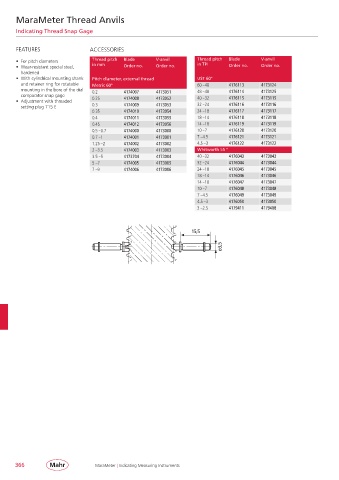

MaraMeter Thread Anvils

Indicating Thread Snap Gage

FEATURES ACCESSORIES

• For pitch diameters Thread pitch Blade V-anvil Thread pitch Blade V-anvil
in TPI
• Wear-resistant special steel, in mm Order no. Order no. Order no. Order no.
hardened
• With cylindrical mounting shank Pitch diameter, external thread UST 60°
and retainer ring for rotatable Metric 60° 60 – 48 4176113 4173124
mounting in the bore of the dial 0.2 4174007 4173051 48 – 40 4176114 4173125
comparator snap gage 40 – 32 4176115 4173115
• Adjustment with threaded 0.25 4174008 4173052 32 – 24 4176116 4173116
setting plug 715 E 0.3 4174009 4173053
0.35 4174010 4173054 24 – 18 4176117 4173117
0.4 4174011 4173055 18 – 14 4176118 4173118
0.45 4174012 4173056 14 – 10 4176119 4173119
0.5 – 0.7 4174000 4173000 10 – 7 4176120 4173120
0.7 – 1 4174001 4173001 7 – 4.5 4176121 4173121
1.25 – 2 4174002 4173002 4.5 – 3 4176122 4173122
2 – 3.5 4174003 4173003 Whitworth 55 °
3.5 – 5 4173704 4173004 40 – 32 4176043 4173043
5 – 7 4174005 4173005 32 – 24 4176044 4173044
7 – 9 4174006 4173006 24 – 18 4176045 4173045
18 – 14 4176046 4173046
14 – 10 4176047 4173047
10 – 7 4176048 4173048
7 – 4.5 4176049 4173049
4.5 – 3 4176050 4173050
3 – 2.5 4179411 4179408

15,5

ø3,5

366 MaraMeter | Indicating Measuring Instruments
