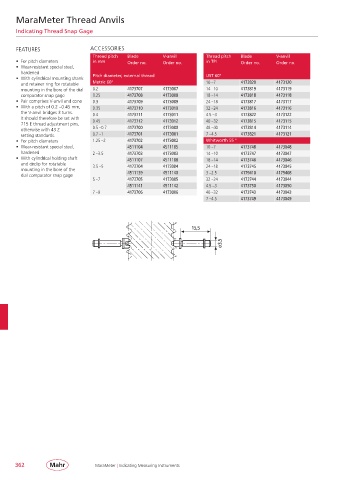

MaraMeter Thread Anvils

Indicating Thread Snap Gage

FEATURES ACCESSORIES
Thread pitch Blade V-anvil Thread pitch Blade V-anvil
• For pitch diameters in mm Order no. Order no. in TPI Order no. Order no.
• Wear-resistant special steel,
hardened
• With cylindrical mounting shank Pitch diameter, external thread UST 60°
and retainer ring for rotatable Metric 60° 10 – 7 4173820 4173120
mounting in the bore of the dial 0.2 4173707 4173007 14 – 10 4173819 4173119
comparator snap gage 0.25 4173708 4173008 18 – 14 4173818 4173118
• Pair comprises V-anvil and cone 0.3 4173709 4173009 24 – 18 4173817 4173117
• With a pitch of 0.2 – 0.45 mm, 0.35 4173710 4173010 32 – 24 4173816 4173116
the V-anvil bridges 3 turns. 0.4 4173711 4173011 4.5 – 3 4173822 4173122
It should therefore be set with 0.45 4173712 4173012 40 – 32 4173815 4173115
715 E thread adjustment pins,
otherwise with 43 Z 0.5 – 0.7 4173700 4173000 48 – 40 4173814 4173114
setting standards. 0.7 – 1 4173701 4173001 7 – 4.5 4173821 4173121
• For pitch diameters 1.25 – 2 4173702 4173002 Whitworth 55 °
• Wear-resistant special steel, 4511104 4511105 10 – 7 4173748 4173048
hardened 2 – 3.5 4173703 4173003 14 – 10 4173747 4173047
• With cylindrical holding shaft 4511107 4511108 18 – 14 4173746 4173046
and circlip for rotatable 3.5 – 5 4173704 4173004 24 – 18 4173745 4173045
mounting in the bore of the 4511139 4511140 3 – 2.5 4179410 4179408
dial comparator snap gage
5 – 7 4173705 4173005 32 – 24 4173744 4173044
4511141 4511142 4.5 – 3 4173750 4173050
7 – 9 4173706 4173006 40 – 32 4173743 4173043
7 – 4.5 4173749 4173049
