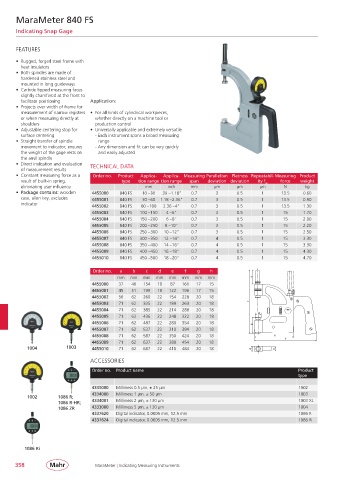

MaraMeter 840 FS

Indicating Snap Gage

FEATURES

• Rugged, forged steel frame with
heat insulators
• Both spindles are made of
hardened stainless steel and
mounted in long guideways
• Carbide tipped measuring faces
slightly chamfered at the front to
facilitate positioning Application:
• Projects over width of frame for
measurement of narrow registers • For all kinds of cylindrical workpieces,
or when measuring directly at whether directly on a machine tool or
shoulders production control
• Adjustable centering stop for • Universally applicable and extremely versatile
surface centering - Each instrument spans a broad measuring
• Straight transfer of spindle range
movement to indicator; ensures - Any dimension and fit can be very quickly
the weight of the gage rests on and easily adjusted
the anvil spindle
• Direct indication and evaluation TECHNICAL DATA
of measurement results
• Constant measuring force as a Order no. Product Applica- Applica- Measuring Parallelism Flatness Repeatabil- Measuring Product
result of built-in spring, type tion range tion range span deviation deviation ity f w force weight
eliminating user influence mm inch mm µm µm µm N kg
• Package contains: wooden 4455000 840 FS 10 – 30 .39 – 1.18” 0.7 3 0.5 1 13.5 0.60
case, allen key, excludes 4455001 840 FS 30 – 60 1.18 – 2.36” 0.7 3 0.5 1 13.5 0.90
indicator
4455002 840 FS 60 – 100 2.36 – 4” 0.7 3 0.5 1 13.5 1.30
4455003 840 FS 100 – 150 4 – 6” 0.7 3 0.5 1 15 1.70
4455004 840 FS 150 – 200 6 – 8” 0.7 3 0.5 1 15 2.00
4455005 840 FS 200 – 250 8 – 10” 0.7 3 0.5 1 15 2.20
4455006 840 FS 250 – 300 10 – 12” 0.7 3 0.5 1 15 2.50
4455007 840 FS 300 – 350 12 – 14” 0.7 4 0.5 1 15 3.30
4455008 840 FS 350 – 400 14 – 16” 0.7 4 0.5 1 15 3.30
4455009 840 FS 400 – 450 16 – 18” 0.7 4 0.5 1 15 4.30
4455010 840 FS 450 – 500 18 – 20” 0.7 4 0.5 1 15 4.70

Order no. a b c d e f g h
mm mm mm mm mm mm mm mm a
4455000 37 46 154 18 87 161 17 15
4455001 45 51 199 18 122 196 17 15
4455002 56 62 260 22 154 228 20 18
4455003 71 62 335 22 189 263 20 18 c
4455004 71 62 385 22 214 288 20 18
d
4455005 71 62 436 22 248 322 20 18
4455006 71 62 487 22 280 354 20 18
b
4455007 71 62 537 22 310 384 20 18
4455008 71 62 587 22 350 424 20 18 e
f
4455009 71 62 637 22 380 454 20 18
1004 1003 4455010 71 62 687 22 410 484 20 18 g h
ACCESSORIES

Order no. Product name Product
type

4335000 Millimess 0.5 µm, ± 25 µm 1002
4334000 Millimess 1 µm, ± 50 µm 1003
1002 1086 R;
1086 R-HR; 4334001 Millimess 2 µm, ± 130 µm 1003 XL
1086 ZR 4333000 Millimess 5 µm, ± 130 µm 1004
4337620 Digital indicator, 0.0005 mm, 12.5 mm 1086 R
4337624 Digital indicator, 0.0005 mm, 12.5 mm 1086 Ri

1086 Ri

358 MaraMeter | Indicating Measuring Instruments
