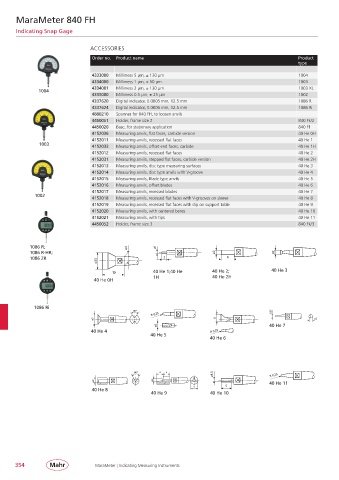

MaraMeter 840 FH

Indicating Snap Gage

ACCESSORIES
Order no. Product name Product
type

4333000 Millimess 5 µm, ± 130 µm 1004
4334000 Millimess 1 µm, ± 50 µm 1003
4334001 Millimess 2 µm, ± 130 µm 1003 XL
1004
4335000 Millimess 0.5 µm, ± 25 µm 1002
4337620 Digital indicator, 0.0005 mm, 12.5 mm 1086 R
4337624 Digital indicator, 0.0005 mm, 12.5 mm 1086 Ri
4880210 Spanner for 840 FH, to loosen anvils
4450051 Holder, frame size 2 840 Fk/2
4450020 Base, for stationary application 840 Ff
4152036 Measuring anvils, flat faces, carbide version 40 He 0H
4152011 Measuring anvils, recessed flat faces 40 He 1
1003 4152033 Measuring anvils, offset end faces, carbide 40 He 1H
4152012 Measuring anvils, recessed flat faces 40 He 2
4152031 Measuring anvils, stepped flat faces, carbide version 40 He 2H
4152013 Measuring anvils, disc type measuring surfaces 40 He 3
4152014 Measuring anvils, disc type anvils with V-groove 40 He 4
4152015 Measuring anvils, Blade type anvils 40 He 5
4152016 Measuring anvils, offset blades 40 He 6
4152017 Measuring anvils, recessed blades 40 He 7
1002
4152018 Measuring anvils, recessed flat faces with V-grooves on sleeve 40 He 8
4152019 Measuring anvils, recessed flat faces with slip on support table 40 He 9
4152020 Measuring anvils, with centered bores 40 He 10
4152021 Measuring anvils, with tips 40 He 11
4450052 Holder, frame size 3 840 Fk/3

1086 R; ø4 ø1
1086 R-HR; ø2 ø2
1086 ZR 2 6
ø7,5
10 40 He 1;40 He 40 He 2; 40 He 3
1H 40 He 2H
40 He 0H

1086 Ri
90° 0,25
R 0,25
ø5 4 ø2
ø2 40 He 7
40 He 4 R 0,25
40 He 5
40 He 6

60° 4 4
ø1,5 R 0,25
ø2 ø2 40 He 11
40 He 8 4 5
40 He 9 40 He 10

354 MaraMeter | Indicating Measuring Instruments
