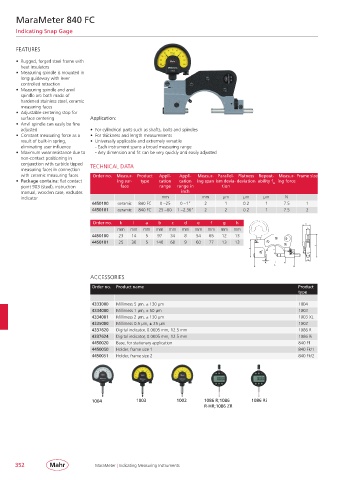

MaraMeter 840 FC

Indicating Snap Gage

FEATURES

• Rugged, forged steel frame with
heat insulators
• Measuring spindle is mounted in
long guideway with lever
controlled retraction
• Measuring spindle and anvil
spindle are both made of
hardened stainless steel, ceramic
measuring faces
• Adjustable centering stop for
surface centering Application:
• Anvil spindle can easily be fine
adjusted • For cylindrical parts such as shafts, bolts and spindles
• Constant measuring force as a • For thickness and length measurements
result of built-in spring, • Universally applicable and extremely versatile
eliminating user influence - Each instrument spans a broad measuring range
• Maximum wear resistance due to - Any dimension and fit can be very quickly and easily adjusted
non-contact positioning in
conjunction with carbide tipped TECHNICAL DATA
measuring faces in connection
with ceramic measuring faces Order no. Measur- Product Appli- Appli- Measur- Parallel- Flatness Repeat- Measur- Frame size
• Package contains: flat contact ing sur- type cation cation ing span ism devia- deviation ability f w ing force
point 903 (steel), instruction face range range in tion
manual, wooden case, excludes inch
indicator mm mm µm µm µm N
4450100 ceramic 840 FC 0 – 25 0 – 1” 2 1 0.2 1 7.5 1
4450101 ceramic 840 FC 25 – 60 1 – 2.36” 2 2 0.2 1 7.5 2

Order no. k l a b c d e f g h k
mm mm mm mm mm mm mm mm mm mm h
4450100 23 14 5 97 34 8 54 65 12 13
4450101 25 30 5 140 68 9 60 77 13 13
f
e
l
d
a g
c
b
ACCESSORIES
Order no. Product name Product
type

4333000 Millimess 5 µm, ± 130 µm 1004
4334000 Millimess 1 µm, ± 50 µm 1003
4334001 Millimess 2 µm, ± 130 µm 1003 XL
4335000 Millimess 0.5 µm, ± 25 µm 1002
4337620 Digital indicator, 0.0005 mm, 12.5 mm 1086 R
4337624 Digital indicator, 0.0005 mm, 12.5 mm 1086 Ri
4450020 Base, for stationary application 840 Ff
4450050 Holder, frame size 1 840 Fk/1
4450051 Holder, frame size 2 840 Fk/2

1004 1003 1002 1086 R;1086 1086 Ri
R-HR;1086 ZR

352 MaraMeter | Indicating Measuring Instruments
