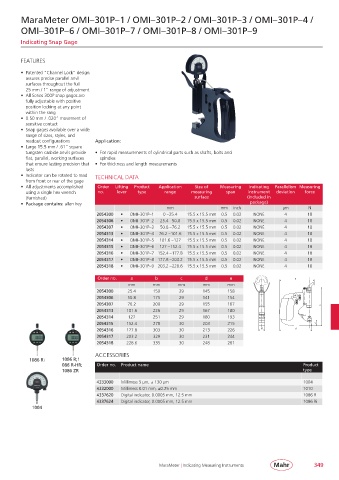

MaraMeter OMI– 301P– 1 / OMI– 301P– 2 / OMI– 301P– 3 / OMI– 301P– 4 /

OMI– 301P– 6 / OMI– 301P– 7 / OMI– 301P– 8 / OMI– 301P– 9
Indicating Snap Gage

FEATURES
• Patented “Channel Lock” design
assures precise parallel anvil
surfaces throughout the full
25 mm / 1“ range of adjustment
• All Series 300P snap gages are
fully adjustable with positive
position locking at any point
within the rang
• 0.50 mm / .020“ movement of
sensitive contact
• Snap gages available over a wide
range of sizes, styles, and
readout configurations Application:
• Large 15.5 mm / .61“ square
tungsten carbide anvils provide • For rapid measurements of cylindrical parts such as shafts, bolts and
flat, parallel, working surfaces spindles
that ensure lasting precision that • For thickness and length measurements
lasts
• Indicator can be rotated to read TECHNICAL DATA
from front or rear of the gage
• All adjustments accomplished Order Lifting Product Application Size of Measuring Indicating Parallelism Measuring
using a single hex wrench no. lever type range measuring span instrument deviation force
(furnished) surface (included in
• Package contains: allen key package)
mm mm inch µm N
2054300 • OMI– 301P– 1 0 – 25.4 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054306 • OMI– 301P– 2 25.4 – 50.8 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054307 • OMI– 301P– 3 50.8 – 76.2 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054313 • OMI– 301P– 4 76.2 – 101.6 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054314 • OMI– 301P– 5 101.6 – 127 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054315 • OMI– 301P– 6 127 – 152.4 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054316 • OMI– 301P– 7 152.4 – 177.8 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054317 • OMI– 301P– 8 177.8 – 203.2 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054318 • OMI– 301P– 9 203.2 – 228.6 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
Order no. a b c d e e
mm mm mm mm mm
2054300 25.4 150 29 145 158
2054306 50.8 175 29 141 154
2054307 76.2 200 29 155 167 b
2054313 101.6 226 29 167 180
2054314 127 251 29 180 193 15,5
2054315 152.4 278 30 203 215 c
2054316 177.8 303 30 213 226 15 d
2054317 203.2 329 30 231 244
2054318 228.6 335 30 248 261
ACCESSORIES
1086 Ri 1086 R;1
086 R-HR; Order no. Product name Product
1086 ZR type

4333000 Millimess 5 µm, ± 130 µm 1004
4332000 Millimess 0.01 mm, ±0.25 mm 1010
4337620 Digital indicator, 0.0005 mm, 12.5 mm 1086 R
4337624 Digital indicator, 0.0005 mm, 12.5 mm 1086 Ri
1004

MaraMeter | Indicating Measuring Instruments 349
