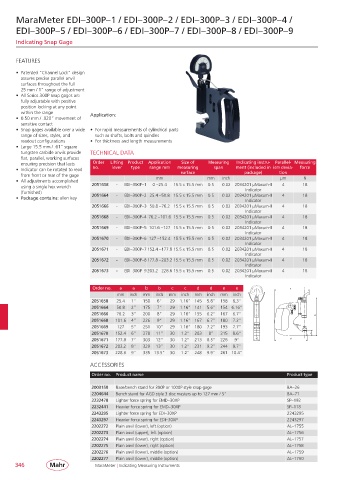

MaraMeter EDI– 300P– 1 / EDI– 300P– 2 / EDI– 300P– 3 / EDI– 300P– 4 /

EDI– 300P– 5 / EDI– 300P– 6 / EDI– 300P– 7 / EDI– 300P– 8 / EDI– 300P– 9
Indicating Snap Gage

FEATURES
• Patented “Channel Lock” design
assures precise parallel anvil
surfaces throughout the full
25 mm / 1“ range of adjustment
• All Series 300P snap gages are
fully adjustable with positive
position locking at any point
within the range Application:
• 0.50 mm / .020“ movement of
sensitive contact
• Snap gages available over a wide • For rapid measurements of cylindrical parts
range of sizes, styles, and such as shafts, bolts and spindles
readout configurations • For thickness and length measurements
• Large 15.5 mm / .61“ square
tungsten carbide anvils provide TECHNICAL DATA
flat, parallel, working surfaces
ensuring precision that lasts Order Lifting Product Application Size of Measuring Indicating instru- Parallel- Measuring
• Indicator can be rotated to read no. lever type range mm measuring span ment (included in ism devia- force
package)
surface
tion
from front or rear of the gage
• All adjustments accomplished mm mm inch µm N
using a single hex wrench 2051658 - EDI– 300P– 1 0 – 25.4 15.5 x 15.5 mm 0.5 0.02 2034201 µMaxum-II 4 18
Indicator
(furnished)
• Package contains: allen key 2051664 - EDI– 300P– 2 25.4 – 50.8 15.5 x 15.5 mm 0.5 0.02 2034201 µMaxum-II 4 18
Indicator
2051666 - EDI– 300P– 3 50.8 – 76.2 15.5 x 15.5 mm 0.5 0.02 2034201 µMaxum-II 4 18
Indicator
2051668 - EDI– 300P– 4 76.2 – 101.6 15.5 x 15.5 mm 0.5 0.02 2034201 µMaxum-II 4 18
Indicator
2051669 - EDI– 300P– 5 101.6 – 127 15.5 x 15.5 mm 0.5 0.02 2034201 µMaxum-II 4 18
Indicator
2051670 - EDI– 300P– 6 127 – 152.4 15.5 x 15.5 mm 0.5 0.02 2034201 µMaxum-II 4 18
Indicator
2051671 - EDI– 300P– 7 152.4 – 177.8 15.5 x 15.5 mm 0.5 0.02 2034201 µMaxum-II 4 18
Indicator
2051672 - EDI– 300P– 8 177.8 – 203.2 15.5 x 15.5 mm 0.5 0.02 2034201 µMaxum-II 4 18
Indicator
2051673 - EDI– 300P– 9 203.2 – 228.6 15.5 x 15.5 mm 0.5 0.02 2034201 µMaxum-II 4 18
Indicator
Order no. a a b b c c d d e e e
mm inch mm inch mm inch mm inch mm inch
2051658 25.4 1” 150 6” 29 1.16” 145 5.8” 158 6.3”
2051664 50.8 2” 175 7” 29 1.16” 141 5.6” 154 6.16”
2051666 76.2 3” 200 8” 29 1.16” 155 6.2” 167 6.7” b
2051668 101.6 4” 226 9” 29 1.16” 167 6.7” 180 7.2”
2051669 127 5” 251 10” 29 1.16” 180 7.2” 193 7.7” 15,5
2051670 152.4 6” 278 11” 30 1.2” 203 8” 215 8.6” c
2051671 177.8 7” 303 12” 30 1.2” 213 8.5” 226 9” 15 d
2051672 203.2 8” 329 13” 30 1.2” 231 9.2” 244 9.7”
2051673 228.6 9” 335 13.5” 30 1.2” 248 9.9” 261 10.4”
ACCESSORIES

Order no. Product name Product type

2003150 Base/bench stand for 300P or 1000P style snap gage BA– 26
2204644 Bench stand for AGD style 3 disc masters up to 127 mm / 5” BA– 71
2232478 Lighter force spring for EMD– 30XP SP– 192
2232441 Heavier force spring for EMD– 30XP SP– 118
2243295 Lighter force spring for EDI– 30XP 2243295
2243297 Heavier force spring for EDI– 30XP 2243297
2202272 Plain anvil (lower), left (option) AL– 1755
2202273 Plain anvil (upper), left (option) AL– 1756
2202274 Plain anvil (lower), right (option) AL– 1757
2202275 Plain anvil (lower), right (option) AL– 1758
2202276 Plain anvil (lower), middle (option) AL– 1759
2202277 Plain anvil (lower), middle (option) AL– 1760
346 MaraMeter | Indicating Measuring Instruments
