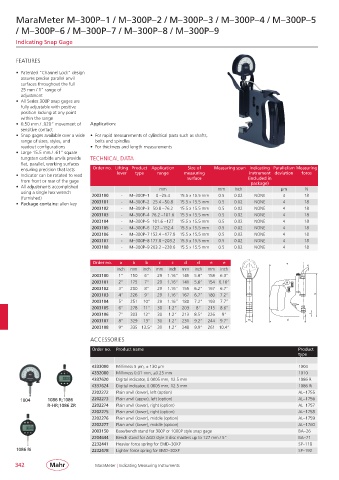

MaraMeter M– 300P– 1 / M– 300P– 2 / M– 300P– 3 / M– 300P– 4 / M– 300P– 5

/ M– 300P– 6 / M– 300P– 7 / M– 300P– 8 / M– 300P– 9
Indicating Snap Gage

FEATURES
• Patented “Channel Lock” design
assures precise parallel anvil
surfaces throughout the full
25 mm / 1“ range of
adjustment
• All Series 300P snap gages are
fully adjustable with positive
position locking at any point
within the range
• 0.50 mm / .020“ movement of Application:
sensitive contact
• Snap gages available over a wide • For rapid measurements of cylindrical parts such as shafts,
range of sizes, styles, and bolts and spindles
readout configurations • For thickness and length measurements
• Large 15.5 mm / .61“ square
tungsten carbide anvils provide TECHNICAL DATA
flat, parallel, working surfaces
ensuring precision that lasts Order no. Lifting Product Application Size of Measuring span Indicating Parallelism Measuring
instrument deviation
• Indicator can be rotated to read lever type range measuring (included in force
surface
from front or rear of the gage package)
• All adjustments accomplished mm mm inch µm N
using a single hex wrench 2003100 - M– 300P– 1 0 – 25.4 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
(furnished)
• Package contains: allen key 2003101 - M– 300P– 2 25.4 – 50.8 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2003102 - M– 300P– 3 50.8 – 76.2 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2003103 - M– 300P– 4 76.2 – 101.6 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2003104 - M– 300P– 5 101.6 – 127 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2003105 - M– 300P– 6 127 – 152.4 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2003106 - M– 300P– 7 152.4 – 177.8 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2003107 - M– 300P– 8 177.8 – 203.2 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2003108 - M– 300P– 9 203.2 – 228.6 15.5 x 15.5 mm 0.5 0.02 NONE 4 18

Order no. a b b c c d d e e e
inch mm inch mm inch mm inch mm inch
2003100 1” 150 6” 29 1.16” 145 5.8” 158 6.3”
2003101 2” 175 7” 29 1.16” 141 5.6” 154 6.16”
2003102 3” 200 8” 29 1.16” 155 6.2” 167 6.7”
2003103 4” 226 9” 29 1.16” 167 6.7” 180 7.2” b
2003104 5” 251 10” 29 1.16” 180 7.2” 193 7.7”
2003105 6” 278 11” 30 1.2” 203 8” 215 8.6” 15,5
2003106 7” 303 12” 30 1.2” 213 8.5” 226 9” c
2003107 8” 329 13” 30 1.2” 231 9.2” 244 9.7” 15 d
2003108 9” 335 13.5” 30 1.2” 248 9.9” 261 10.4”

ACCESSORIES
Order no. Product name Product
type

4333000 Millimess 5 µm, ± 130 µm 1004
4332000 Millimess 0.01 mm, ±0.25 mm 1010
4337620 Digital indicator, 0.0005 mm, 12.5 mm 1086 R
4337624 Digital indicator, 0.0005 mm, 12.5 mm 1086 Ri
2202272 Plain anvil (lower), left (option) AL– 1755
1004 1086 R;1086 2202273 Plain anvil (upper), left (option) AL– 1756
R-HR;1086 ZR 2202274 Plain anvil (lower), right (option) AL– 1757
2202275 Plain anvil (lower), right (option) AL– 1758
2202276 Plain anvil (lower), middle (option) AL– 1759
2202277 Plain anvil (lower), middle (option) AL– 1760
2003150 Base/bench stand for 300P or 1000P style snap gage BA– 26
2204644 Bench stand for AGD style 3 disc masters up to 127 mm / 5” BA– 71
2232441 Heavier force spring for EMD– 30XP SP– 118
1086 Ri 2232478 Lighter force spring for EMD– 30XP SP– 192

342 MaraMeter | Indicating Measuring Instruments
