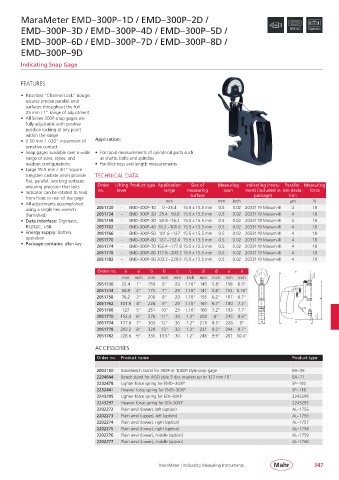

MaraMeter EMD– 300P– 1D / EMD– 300P– 2D /

EMD– 300P– 3D / EMD– 300P– 4D / EMD– 300P– 5D /
EMD– 300P– 6D / EMD– 300P– 7D / EMD– 300P– 8D /
EMD– 300P– 9D

Indicating Snap Gage

FEATURES
• Patented “Channel Lock” design
assures precise parallel anvil
surfaces throughout the full
25 mm / 1“ range of adjustment
• All Series 300P snap gages are
fully adjustable with positive
position locking at any point
within the range
• 0.50 mm / .020“ movement of Application:
sensitive contact
• Snap gages available over a wide • For rapid measurements of cylindrical parts such
range of sizes, styles, and as shafts, bolts and spindles
readout configurations • For thickness and length measurements
• Large 15.5 mm / .61“ square
tungsten carbide anvils provide TECHNICAL DATA
flat, parallel, working surfaces
ensuring precision that lasts Order Lifting Product type Application Size of Measuring Indicating instru- Parallel- Measuring
• Indicator can be rotated to read no. lever range measuring span ment (included in ism devia- force
tion
surface
package)
from front or rear of the gage
• All adjustments accomplished mm mm inch µm N
using a single hex wrench 2051730 - EMD– 300P– 1D 0 – 25.4 15.5 x 15.5 mm 0.5 0.02 2033119 Maxum-III 4 18
(furnished) 2051734 - EMD– 300P– 2D 25.4 – 50.8 15.5 x 15.5 mm 0.5 0.02 2033119 Maxum-III 4 18
• Data interface: Digimatic, 2051758 - EMD– 300P– 3D 50.8 – 76.2 15.5 x 15.5 mm 0.5 0.02 2033119 Maxum-III 4 18
RS232C, USB 2051762 - EMD– 300P– 4D 76.2 – 101.6 15.5 x 15.5 mm 0.5 0.02 2033119 Maxum-III 4 18
• Energy supply: Battery 2051766 - EMD– 300P– 5D 101.6 – 127 15.5 x 15.5 mm 0.5 0.02 2033119 Maxum-III 4 18
operation 2051770 - EMD– 300P– 6D 127 – 152.4 15.5 x 15.5 mm 0.5 0.02 2033119 Maxum-III 4 18
• Package contains: allen key
2051774 - EMD– 300P– 7D152.4 – 177.8 15.5 x 15.5 mm 0.5 0.02 2033119 Maxum-III 4 18
2051778 - EMD– 300P– 8D177.8 – 203.2 15.5 x 15.5 mm 0.5 0.02 2033119 Maxum-III 4 18
2051782 - EMD– 300P– 9D203.2 – 228.6 15.5 x 15.5 mm 0.5 0.02 2033119 Maxum-III 4 18
Order no. a a b b c c d d e e e
mm inch mm inch mm inch mm inch mm inch
2051730 25.4 1” 150 6” 29 1.16” 145 5.8” 158 6.3”
2051734 50.8 2” 175 7” 29 1.16” 141 5.6” 154 6.16”
2051758 76.2 3” 200 8” 29 1.16” 155 6.2” 167 6.7” b
2051762 101.6 4” 226 9” 29 1.16” 167 6.7” 180 7.2”
2051766 127 5” 251 10” 29 1.16” 180 7.2” 193 7.7” 15,5
2051770 152.4 6” 278 11” 30 1.2” 203 8” 215 8.6” c
2051774 177.8 7” 303 12” 30 1.2” 213 8.5” 226 9” 15 d
2051778 203.2 8” 329 13” 30 1.2” 231 9.2” 244 9.7”
2051782 228.6 9” 335 13.5” 30 1.2” 248 9.9” 261 10.4”

ACCESSORIES
Order no. Product name Product type

2003150 Base/bench stand for 300P or 1000P style snap gage BA– 26
2204644 Bench stand for AGD style 3 disc masters up to 127 mm / 5” BA– 71
2232478 Lighter force spring for EMD– 30XP SP– 192
2232441 Heavier force spring for EMD– 30XP SP– 118
2243295 Lighter force spring for EDI– 30XP 2243295
2243297 Heavier force spring for EDI– 30XP 2243297
2202272 Plain anvil (lower), left (option) AL– 1755
2202273 Plain anvil (upper), left (option) AL– 1756
2202274 Plain anvil (lower), right (option) AL– 1757
2202275 Plain anvil (lower), right (option) AL– 1758
2202276 Plain anvil (lower), middle (option) AL– 1759
2202277 Plain anvil (lower), middle (option) AL– 1760

MaraMeter | Indicating Measuring Instruments 347
