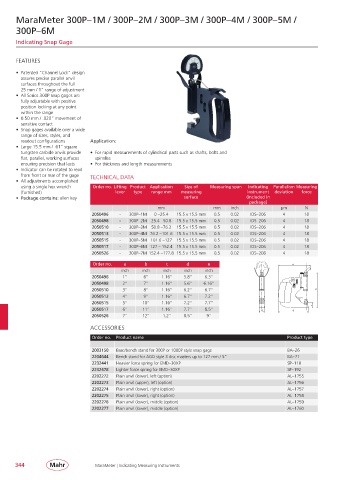

MaraMeter 300P– 1M / 300P– 2M / 300P– 3M / 300P– 4M / 300P– 5M /

300P– 6M
Indicating Snap Gage

FEATURES
• Patented “Channel Lock” design
assures precise parallel anvil
surfaces throughout the full
25 mm / 1“ range of adjustment
• All Series 300P snap gages are
fully adjustable with positive
position locking at any point
within the range
• 0.50 mm / .020“ movement of
sensitive contact
• Snap gages available over a wide
range of sizes, styles, and
readout configurations Application:
• Large 15.5 mm / .61“ square
tungsten carbide anvils provide • For rapid measurements of cylindrical parts such as shafts, bolts and
flat, parallel, working surfaces spindles
ensuring precision that lasts • For thickness and length measurements
• Indicator can be rotated to read
from front or rear of the gage TECHNICAL DATA
• All adjustments accomplished
using a single hex wrench Order no. Lifting Product Application Size of Measuring span Indicating Parallelism Measuring
(furnished) lever type range mm measuring instrument deviation force
• Package contains: allen key surface (included in
package)
mm mm inch µm N
2050496 - 300P– 1M 0 – 25.4 15.5 x 15.5 mm 0.5 0.02 IDS– 206 4 18
2050498 - 300P– 2M 25.4 – 50.8 15.5 x 15.5 mm 0.5 0.02 IDS– 206 4 18
2050510 - 300P– 3M 50.8 – 76.2 15.5 x 15.5 mm 0.5 0.02 IDS– 206 4 18
2050513 - 300P– 4M 76.2 – 101.6 15.5 x 15.5 mm 0.5 0.02 IDS– 206 4 18
2050515 - 300P– 5M 101.6 – 127 15.5 x 15.5 mm 0.5 0.02 IDS– 206 4 18
2050517 - 300P– 6M 127 – 152.4 15.5 x 15.5 mm 0.5 0.02 IDS– 206 4 18
2050526 - 300P– 7M 152.4 – 177.8 15.5 x 15.5 mm 0.5 0.02 IDS– 208 4 18
Order no. a b c d e e
inch inch inch inch inch
2050496 1” 6” 1.16” 5.8” 6.3”
2050498 2” 7” 1.16” 5.6” 6.16”
2050510 3” 8” 1.16” 6.2” 6.7” b
2050513 4” 9” 1.16” 6.7” 7.2”
15,5
2050515 5” 10” 1.16” 7.2” 7.7”
c
2050517 6” 11” 1.16” 7.7” 8.5” 15 d
2050526 7” 12” 1.2” 8.5” 9”
ACCESSORIES
Order no. Product name Product type

2003150 Base/bench stand for 300P or 1000P style snap gage BA– 26
2204644 Bench stand for AGD style 3 disc masters up to 127 mm / 5” BA– 71
2232441 Heavier force spring for EMD– 30XP SP– 118
2232478 Lighter force spring for EMD– 30XP SP– 192
2202272 Plain anvil (lower), left (option) AL– 1755
2202273 Plain anvil (upper), left (option) AL– 1756
2202274 Plain anvil (lower), right (option) AL– 1757
2202275 Plain anvil (lower), right (option) AL– 1758
2202276 Plain anvil (lower), middle (option) AL– 1759
2202277 Plain anvil (lower), middle (option) AL– 1760

344 MaraMeter | Indicating Measuring Instruments
