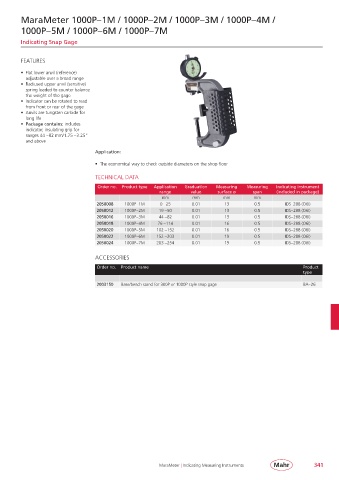

MaraMeter 1000P– 1M / 1000P– 2M / 1000P– 3M / 1000P– 4M /

1000P– 5M / 1000P– 6M / 1000P– 7M
Indicating Snap Gage

FEATURES
• Flat lower anvil (reference)
adjustable over a broad range
• Radiused upper anvil (sensitive)
spring loaded to counter balance
the weight of the gage
• Indicator can be rotated to read
from front or rear of the gage
• Anvils are tungsten carbide for
long life
• Package contains: includes
indicator, insulating grip for
ranges 44 – 82 mm/1.75 – 3.25”
and above

Application:
• The economical way to check outside diameters on the shop floor

TECHNICAL DATA
Order no. Product type Application Graduation Measuring Measuring Indicating instrument
range value surface ø span (included in package)
mm mm mm mm
2050008 1000P– 1M 0 – 25 0.01 13 0.5 IDS– 288 (O6I)
2050012 1000P– 2M 19 – 50 0.01 13 0.5 IDS– 288 (O6I)
2050016 1000P– 3M 44 – 82 0.01 13 0.5 IDS– 288 (O6I)
2050018 1000P– 4M 76 – 114 0.01 16 0.5 IDS– 288 (O6I)
2050020 1000P– 5M 102 – 152 0.01 16 0.5 IDS– 288 (O6I)
2050022 1000P– 6M 152 – 203 0.01 19 0.5 IDS– 288 (O6I)
2050024 1000P– 7M 203 – 254 0.01 19 0.5 IDS– 288 (O6I)

ACCESSORIES
Order no. Product name Product
type

2003150 Base/bench stand for 300P or 1000P style snap gage BA– 26

MaraMeter | Indicating Measuring Instruments 341
