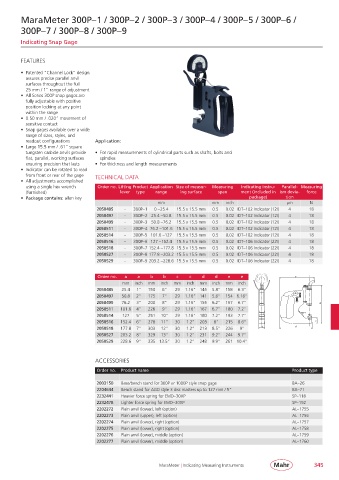

MaraMeter 300P– 1 / 300P– 2 / 300P– 3 / 300P– 4 / 300P– 5 / 300P– 6 /

300P– 7 / 300P– 8 / 300P– 9
Indicating Snap Gage

FEATURES
• Patented “Channel Lock” design
assures precise parallel anvil
surfaces throughout the full
25 mm / 1“ range of adjustment
• All Series 300P snap gages are
fully adjustable with positive
position locking at any point
within the range
• 0.50 mm / .020“ movement of
sensitive contact
• Snap gages available over a wide
range of sizes, styles, and
readout configurations Application:
• Large 15.5 mm / .61“ square
tungsten carbide anvils provide • For rapid measurements of cylindrical parts such as shafts, bolts and
flat, parallel, working surfaces spindles
ensuring precision that lasts • For thickness and length measurements
• Indicator can be rotated to read
from front or rear of the gage TECHNICAL DATA
• All adjustments accomplished
using a single hex wrench Order no. Lifting Product Application Size of measur- Measuring Indicating instru- Parallel- Measuring
(furnished) lever type range ing surface span ment (included in ism devia- force
• Package contains: allen key package) tion
mm mm inch µm N
2050485 - 300P– 1 0 – 25.4 15.5 x 15.5 mm 0.5 0.02 IDT– 102 Indicator (12I) 4 18
2050497 - 300P– 2 25.4 – 50.8 15.5 x 15.5 mm 0.5 0.02 IDT– 102 Indicator (12I) 4 18
2050499 - 300P– 3 50.8 – 76.2 15.5 x 15.5 mm 0.5 0.02 IDT– 102 Indicator (12I) 4 18
2050511 - 300P– 4 76.2 – 101.6 15.5 x 15.5 mm 0.5 0.02 IDT– 102 Indicator (12I) 4 18
2050514 - 300P– 5 101.6 – 127 15.5 x 15.5 mm 0.5 0.02 IDT– 102 Indicator (12I) 4 18
2050516 - 300P– 6 127 – 152.4 15.5 x 15.5 mm 0.5 0.02 IDT– 106 Indicator (22I) 4 18
2050518 - 300P– 7 152.4 – 177.8 15.5 x 15.5 mm 0.5 0.02 IDT– 106 Indicator (22I) 4 18
2050527 - 300P– 8 177.8 – 203.2 15.5 x 15.5 mm 0.5 0.02 IDT– 106 Indicator (22I) 4 18
2050529 - 300P– 9 203.2 – 228.6 15.5 x 15.5 mm 0.5 0.02 IDT– 106 Indicator (22I) 4 18

Order no. a a b b c c d d e e e
mm inch mm inch mm inch mm inch mm inch
2050485 25.4 1” 150 6” 29 1.16” 145 5.8” 158 6.3”
2050497 50.8 2” 175 7” 29 1.16” 141 5.6” 154 6.16”
2050499 76.2 3” 200 8” 29 1.16” 155 6.2” 167 6.7” b
2050511 101.6 4” 226 9” 29 1.16” 167 6.7” 180 7.2”
2050514 127 5” 251 10” 29 1.16” 180 7.2” 193 7.7” 15,5
2050516 152.4 6” 278 11” 30 1.2” 203 8” 215 8.6” c
2050518 177.8 7” 303 12” 30 1.2” 213 8.5” 226 9” 15 d
2050527 203.2 8” 329 13” 30 1.2” 231 9.2” 244 9.7”
2050529 228.6 9” 335 13.5” 30 1.2” 248 9.9” 261 10.4”

ACCESSORIES

Order no. Product name Product type

2003150 Base/bench stand for 300P or 1000P style snap gage BA– 26
2204644 Bench stand for AGD style 3 disc masters up to 127 mm / 5” BA– 71
2232441 Heavier force spring for EMD– 30XP SP– 118
2232478 Lighter force spring for EMD– 30XP SP– 192
2202272 Plain anvil (lower), left (option) AL– 1755
2202273 Plain anvil (upper), left (option) AL– 1756
2202274 Plain anvil (lower), right (option) AL– 1757
2202275 Plain anvil (lower), right (option) AL– 1758
2202276 Plain anvil (lower), middle (option) AL– 1759
2202277 Plain anvil (lower), middle (option) AL– 1760

MaraMeter | Indicating Measuring Instruments 345
