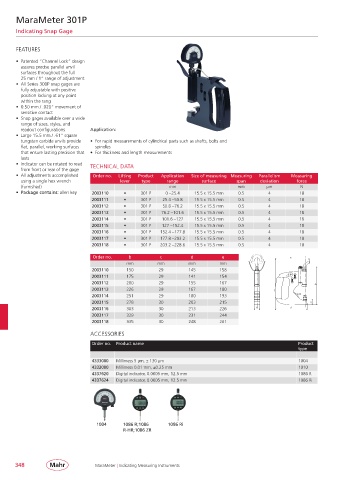

P. 352
MaraMeter 301P
Indicating Snap Gage
FEATURES
• Patented “Channel Lock” design
assures precise parallel anvil
surfaces throughout the full
25 mm / 1“ range of adjustment
• All Series 300P snap gages are
fully adjustable with positive
position locking at any point
within the rang
• 0.50 mm / .020“ movement of
sensitive contact
• Snap gages available over a wide
range of sizes, styles, and
readout configurations Application:
• Large 15.5 mm / .61“ square
tungsten carbide anvils provide • For rapid measurements of cylindrical parts such as shafts, bolts and
flat, parallel, working surfaces spindles
that ensure lasting precision that • For thickness and length measurements
lasts
• Indicator can be rotated to read TECHNICAL DATA
from front or rear of the gage
• All adjustments accomplished Order no. Lifting Product Application Size of measuring Measuring Parallelism Measuring
using a single hex wrench lever type range surface span deviation force
(furnished) mm mm µm N
• Package contains: allen key 2003110 • 301 P 0 – 25.4 15.5 x 15.5 mm 0.5 4 18
2003111 • 301 P 25.4 – 50.8 15.5 x 15.5 mm 0.5 4 18
2003112 • 301 P 50.8 – 76.2 15.5 x 15.5 mm 0.5 4 18
2003113 • 301 P 76.2 – 101.6 15.5 x 15.5 mm 0.5 4 18
2003114 • 301 P 101.6 – 127 15.5 x 15.5 mm 0.5 4 18
2003115 • 301 P 127 – 152.4 15.5 x 15.5 mm 0.5 4 18
2003116 • 301 P 152.4 – 177.8 15.5 x 15.5 mm 0.5 4 18
2003117 • 301 P 177.8 – 203.2 15.5 x 15.5 mm 0.5 4 18
2003118 • 301 P 203.2 – 228.6 15.5 x 15.5 mm 0.5 4 18
Order no. b c d e e
mm mm mm mm
2003110 150 29 145 158
2003111 175 29 141 154
2003112 200 29 155 167
b
2003113 226 29 167 180
2003114 251 29 180 193 15,5
2003115 278 30 203 215 c
2003116 303 30 213 226 15 d
2003117 329 30 231 244
2003118 335 30 248 261
ACCESSORIES
Order no. Product name Product
type
4333000 Millimess 5 µm, ± 130 µm 1004
4332000 Millimess 0.01 mm, ±0.25 mm 1010
4337620 Digital indicator, 0.0005 mm, 12.5 mm 1086 R
4337624 Digital indicator, 0.0005 mm, 12.5 mm 1086 Ri
1004 1086 R;1086 1086 Ri
R-HR;1086 ZR
348 MaraMeter | Indicating Measuring Instruments
