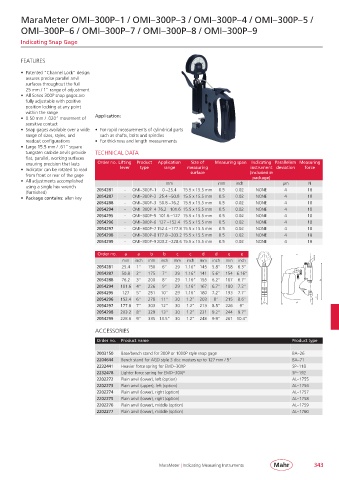

Page 347 - Mahr马尔量具完整

MaraMeter OMI– 300P– 1 / OMI– 300P– 3 / OMI– 300P– 4 / OMI– 300P– 5 /

OMI– 300P– 6 / OMI– 300P– 7 / OMI– 300P– 8 / OMI– 300P– 9
Indicating Snap Gage

FEATURES
• Patented “Channel Lock” design
assures precise parallel anvil
surfaces throughout the full
25 mm / 1“ range of adjustment
• All Series 300P snap gages are
fully adjustable with positive
position locking at any point
within the range
• 0.50 mm / .020“ movement of Application:
sensitive contact
• Snap gages available over a wide • For rapid measurements of cylindrical parts
range of sizes, styles, and such as shafts, bolts and spindles
readout configurations • For thickness and length measurements
• Large 15.5 mm / .61“ square
tungsten carbide anvils provide TECHNICAL DATA
flat, parallel, working surfaces
ensuring precision that lasts Order no. Lifting Product Application Size of Measuring span Indicating Parallelism Measuring
instrument deviation
• Indicator can be rotated to read lever type range measuring (included in force
surface
from front or rear of the gage package)
• All adjustments accomplished mm mm inch µm N
using a single hex wrench 2054281 - OMI– 300P– 1 0 – 25.4 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
(furnished)
• Package contains: allen key 2054287 - OMI– 300P– 2 25.4 – 50.8 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054288 - OMI– 300P– 3 50.8 – 76.2 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054294 - OMI– 300P– 4 76.2 – 101.6 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054295 - OMI– 300P– 5 101.6 – 127 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054296 - OMI– 300P– 6 127 – 152.4 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054297 - OMI– 300P– 7152.4 – 177.8 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054298 - OMI– 300P– 8177.8 – 203.2 15.5 x 15.5 mm 0.5 0.02 NONE 4 18
2054299 - OMI– 300P– 9203.2 – 228.6 15.5 x 15.5 mm 0.5 0.02 NONE 4 18

Order no. a a b b c c d d e e e
mm inch mm inch mm inch mm inch mm inch
2054281 25.4 1” 150 6” 29 1.16” 145 5.8” 158 6.3”
2054287 50.8 2” 175 7” 29 1.16” 141 5.6” 154 6.16”
2054288 76.2 3” 200 8” 29 1.16” 155 6.2” 167 6.7” b
2054294 101.6 4” 226 9” 29 1.16” 167 6.7” 180 7.2”
2054295 127 5” 251 10” 29 1.16” 180 7.2” 193 7.7” 15,5
2054296 152.4 6” 278 11” 30 1.2” 203 8” 215 8.6” c
15 d
2054297 177.8 7” 303 12” 30 1.2” 213 8.5” 226 9”
2054298 203.2 8” 329 13” 30 1.2” 231 9.2” 244 9.7”
2054299 228.6 9” 335 13.5” 30 1.2” 248 9.9” 261 10.4”

ACCESSORIES
Order no. Product name Product type

2003150 Base/bench stand for 300P or 1000P style snap gage BA– 26
2204644 Bench stand for AGD style 3 disc masters up to 127 mm / 5” BA– 71
2232441 Heavier force spring for EMD– 30XP SP– 118
2232478 Lighter force spring for EMD– 30XP SP– 192
2202272 Plain anvil (lower), left (option) AL– 1755
2202273 Plain anvil (upper), left (option) AL– 1756
2202274 Plain anvil (lower), right (option) AL– 1757
2202275 Plain anvil (lower), right (option) AL– 1758
2202276 Plain anvil (lower), middle (option) AL– 1759
2202277 Plain anvil (lower), middle (option) AL– 1760

MaraMeter | Indicating Measuring Instruments 343
