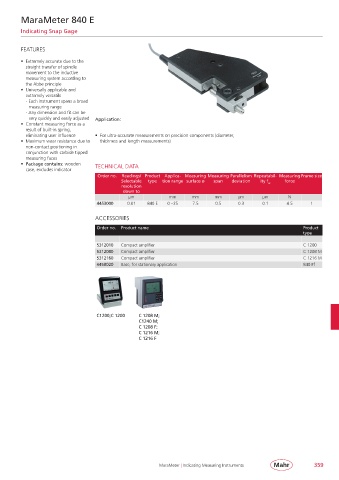

MaraMeter 840 E

Indicating Snap Gage

FEATURES

• Extremely accurate due to the
straight transfer of spindle
movement to the inductive
measuring system according to
the Abbe principle
• Universally applicable and
extremely versatile
- Each instrument spans a broad
measuring range
- Any dimension and fit can be
very quickly and easily adjusted Application:
• Constant measuring force as a
result of built-in spring,
eliminating user influence • For ultra-accurate measurements on precision components (diameter,
• Maximum wear resistance due to thickness and length measurements)
non-contact positioning in
conjunction with carbide tipped
measuring faces
• Package contains: wooden TECHNICAL DATA
case, excludes indicator
Order no. Readings/ Product Applica- Measuring Measuring Parallelism Repeatabil- Measuring Frame size
Selectable type tion range surface ø span deviation ity f w force
resolution
down to
µm mm mm mm µm µm N
4453000 0.01 840 E 0 – 25 7.5 0.5 0.3 0.1 4.5 1

ACCESSORIES
Order no. Product name Product
type

5312010 Compact amplifier C 1200
5312080 Compact amplifier C 1208 M
5312160 Compact amplifier C 1216 M
4450020 Base, for stationary application 840 Ff

C1200;C 1200 C 1208 M;
C1240 M;
C 1208 F;
C 1216 M;
C 1216 F

MaraMeter | Indicating Measuring Instruments 359
