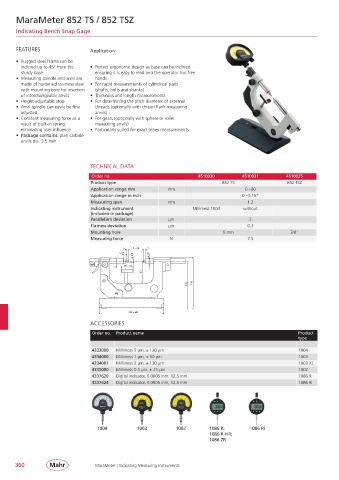

MaraMeter 852 TS / 852 TSZ

Indicating Bench Snap Gage

FEATURES Application:

• Rugged steel frame can be
inclined up to 45° from the • Perfect ergonomic design as base can be inclined
sturdy base ensuring it is easy to read and the operator has free
• Measuring spindle and anvil are hands
made of hardened stainless steel • For rapid measurements of cylindrical parts
with mounting bore for insertion (shafts, bolts and shanks)
of interchangeable anvils • Thickness and length measurements
• Height adjustable stop • For determining the pitch diameter of external
• Anvil spindle can easily be fine threads (optionally with thread flank measuring
adjusted anvils)
• Constant measuring force as a • For gears (optionally with sphere or roller
result of built-in spring, measuring anvils)
eliminating user influence • Particularly suited for exact series measurements
• Package contains: plan carbide
anvils dia. 3.5 mm

TECHNICAL DATA
Order no. 4510030 4510031 4510035
Product type 852 TS 852 TSZ
Application range mm mm 0 – 80
Application range in inch 0 – 3.15”
Measuring span mm 1.2
Indicating instrument Millimess 1003 without
(included in package)
Parallelism deviation µm 2
Flatness deviation µm 0.3
Mounting hole 8 mm 3/8”
Measuring force N 7.5
5 0 - 80 5
5,5*
ø 3,5 ø 10
26 x 15
5
47
102 110

140 x 80
ACCESSORIES
Order no. Product name Product
type

4333000 Millimess 5 µm, ± 130 µm 1004
4334000 Millimess 1 µm, ± 50 µm 1003
4334001 Millimess 2 µm, ± 130 µm 1003 XL
4335000 Millimess 0.5 µm, ± 25 µm 1002
4337620 Digital indicator, 0.0005 mm, 12.5 mm 1086 R
4337624 Digital indicator, 0.0005 mm, 12.5 mm 1086 Ri

1004 1003 1002 1086 R; 1086 Ri
1086 R-HR;
1086 ZR

360 MaraMeter | Indicating Measuring Instruments
