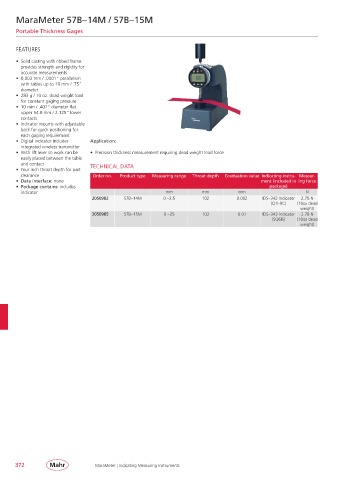

MaraMeter 57B– 14M / 57B– 15M

Portable Thickness Gages

FEATURES

• Solid casting with ribbed frame
provides strength and rigidity for
accurate measurements
• 0.003 mm / .0001“ parallelism
with tables up to 19 mm / .75“
diameter
• 283 g / 10 oz. dead weight load
for constant gaging pressure
• 10 mm / .407“ diameter flat
upper 54.0 mm / 2.125“ lower
contacts
• Indicator mounts with adjustable
back for quick positioning for
each gaging requirement
• Digital indicator includes Application:
integrated wireless transmitter
• With lift lever so work can be • Precision thickness measurement requiring dead weight load force
easily placed between the table
and contact TECHNICAL DATA
• Four inch throat depth for part
clearance Order no. Product type Measuring range Throat depth Graduation value Indicating instru- Measur-
• Data interface: none ment (included in ing force
• Package contains: includes package)
indicator mm mm mm N
2050983 57B– 14M 0 – 2.5 102 0.002 IDS– 342 Indicator 2.78 N
(Q1I-RC) (10oz dead
weight)
2050985 57B– 15M 0 – 25 102 0.01 IDS– 343 Indicator 2.78 N
(SQ6IS) (10oz dead
weight)

372 MaraMeter | Indicating Measuring Instruments
