P. 381

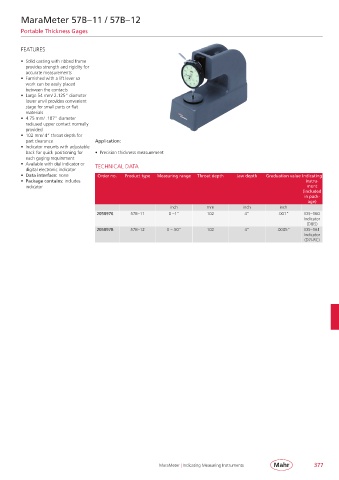

MaraMeter 57B– 11 / 57B– 12

        Portable Thickness Gages


        FEATURES

        •  Solid casting with ribbed frame
          provides strength and rigidity for
          accurate measurements
        •  Furnished with a lift lever so
          work can be easily placed
          between the contacts
        •  Large 54 mm/ 2.125“ diameter
          lower anvil provides convenient
          stage for small parts or flat
          materials
        •  4.75 mm/ .187“ diameter
          radiused upper contact normally
          provided
        •  102 mm/ 4“ throat depth for
          part clearance          Application:
        •  Indicator mounts with adjustable
          back for quick positioning for   •  Precision thickness measurement
          each gaging requirement
        •  Available with dial indicator or   TECHNICAL DATA
          digital electronic indicator
        •  Data interface: none    Order no.  Product type  Measuring range  Throat depth  Jaw depth  Graduation value Indicating
        •  Package contains: includes                                                                       instru-
          indicator                                                                                          ment
                                                                                                           (included
                                                                                                            in pack-
                                                                                                             age)
                                                             inch         mm          inch         inch
                                   2050976     57B– 11      0 – 1”        102          4”          .001”    IDS– 160
                                                                                                            Indicator
                                                                                                             (D8IS)
                                   2050978     57B– 12      0 – .50”      102          4”         .0005”    IDS– 161
                                                                                                            Indicator
                                                                                                            (D7I-RC)















































                                                         MaraMeter | Indicating Measuring Instruments          377
