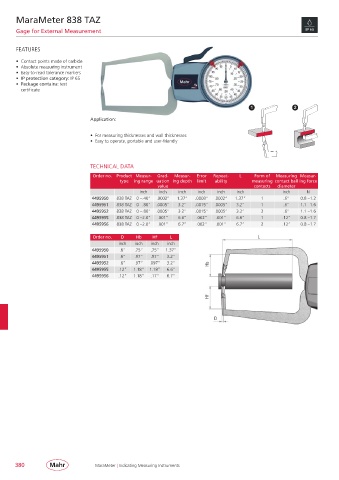

MaraMeter 838 TAZ

Gage for External Measurement

FEATURES

• Contact points made of carbide
• Absolute measuring instrument
• Easy-to-read tolerance markers
• IP protection category: IP 65
• Package contains: test
certificate

1 2

Application:

• For measuring thicknesses and wall thicknesses
• Easy to operate, portable and user-friendly

TECHNICAL DATA
Order no. Product Measur- Grad- Measur- Error Repeat- L Form of Measuring Measur-
type ing range uation ing depth limit ability measuring contact ball ing force
value contacts diameter
inch inch inch inch inch inch inch N
4495950 838 TAZ 0 – .40” .0002’’ 1.37” .0008” .0002” 1.37” 1 .6” 0.8 – 1.2
4495951 838 TAZ 0 – .80” .0005” 3.2” .0015” .0005” 3.2” 1 .6” 1.1 – 1.6
4495952 838 TAZ 0 – .80” .0005” 3.2” .0015” .0005” 3.2” 2 .6” 1.1 – 1.6
4495955 838 TAZ 0 – 2.0” .001” 6.6” .002” .001” 6.6” 1 .12” 0.8 – 1.7
4495956 838 TAZ 0 – 2.0” .001” 6.7” .002” .001” 6.7” 2 .12” 0.8 – 1.7

Order no. D Hb Hf L
inch inch inch inch
4495950 .6” .75” .75” 1.37”
4495951 .6” .97” .97” 3.2”
4495952 .6” .97” .097” 3.2”
4495955 .12” 1.18” 1.18” 6.6”
4495956 .12” 1.18” .17” 6.7”
