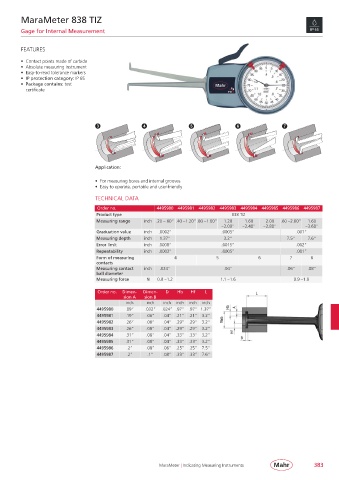

MaraMeter 838 TIZ

Gage for Internal Measurement

FEATURES

• Contact points made of carbide
• Absolute measuring instrument
• Easy-to-read tolerance markers
• IP protection category: IP 65
• Package contains: test
certificate

3 4 5 6 7

Application:

• For measuring bores and internal grooves
• Easy to operate, portable and user-friendly

TECHNICAL DATA
Order no. 4495980 4495981 4495982 4495983 4495984 4495985 4495986 4495987
Product type 838 TIZ
Measuring range inch .20 – .60” .40 – 1.20” .80 – 1.60” 1.20 1.60 2.00 .60 – 2.60” 1.60
– 2.00” – 2.40” – 2.80” – 3.60”
Graduation value inch .0002’’ .0005” .001”
Measuring depth inch 1.37” 3.2” 7.5” 7.6”
Error limit inch .0008” .0015” .002”
Repeatability inch .0002’’ .0005” .001”
Form of measuring 4 5 6 7 6
contacts
Measuring contact inch .024” .04” .06” .08”
ball diameter
Measuring force N 0.8 – 1.2 1.1 – 1.6 0.9 – 1.9
Order no. Dimen- Dimen- D Hb Hf L
sion A sion B
inch inch inch inch inch inch
4495980 .09” .032” .024” .97” .97” 1.37”
4495981 .19” .06” .04” .21” .21” 3.2”
4495982 .26” .08” .04” .29” .29” 3.2”
4495983 .26” .08” .04” .29” .29” 3.2”
4495984 .31” .08” .04” .33” .33” 3.2”
4495985 .31” .08” .04” .33” .33” 3.2”
4495986 .2” .08” .06” .25” .25” 7.5”
4495987 .2” .1” .08” .33” .33” 7.6”
